Transaction control

Transaction and Schedule

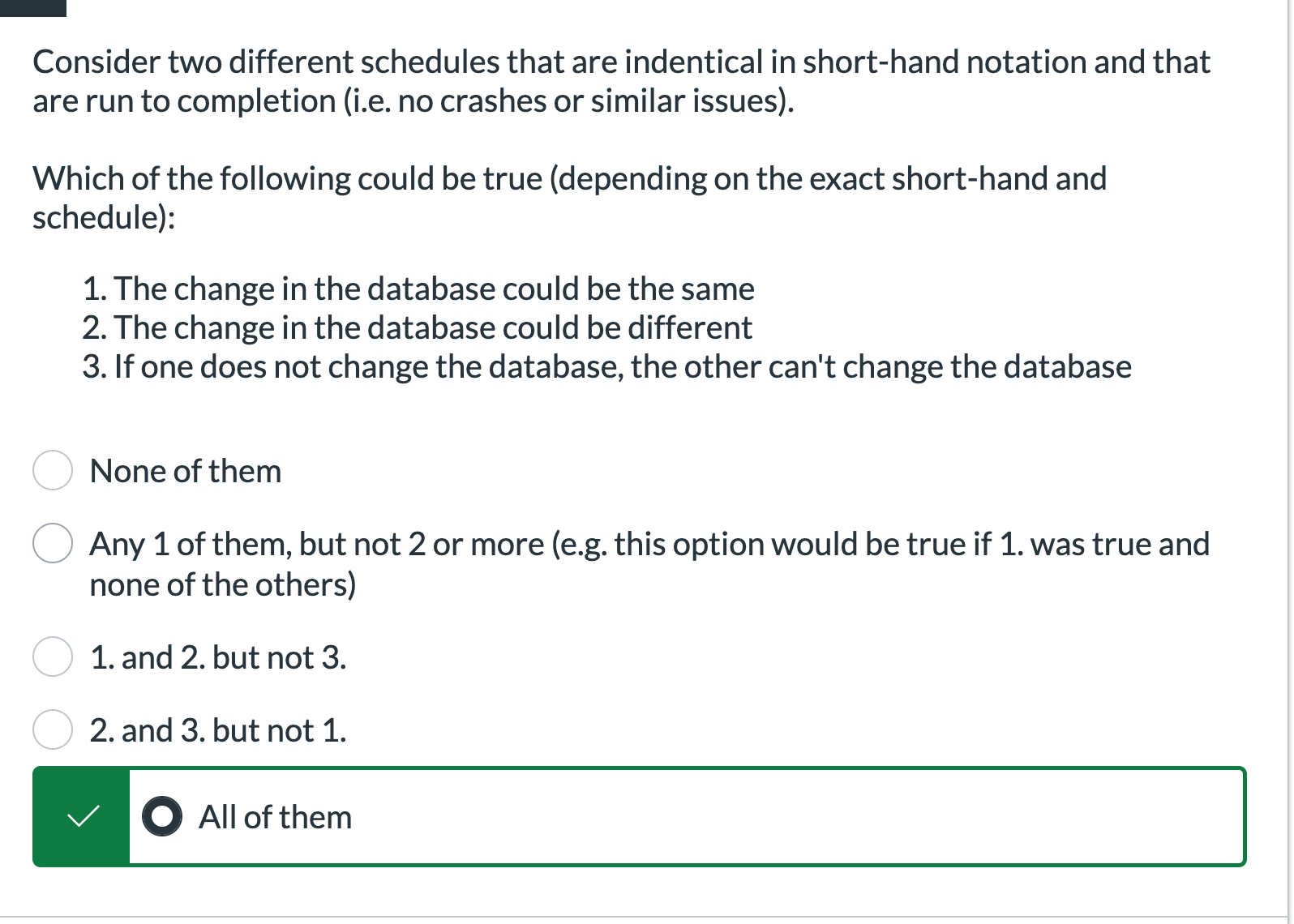

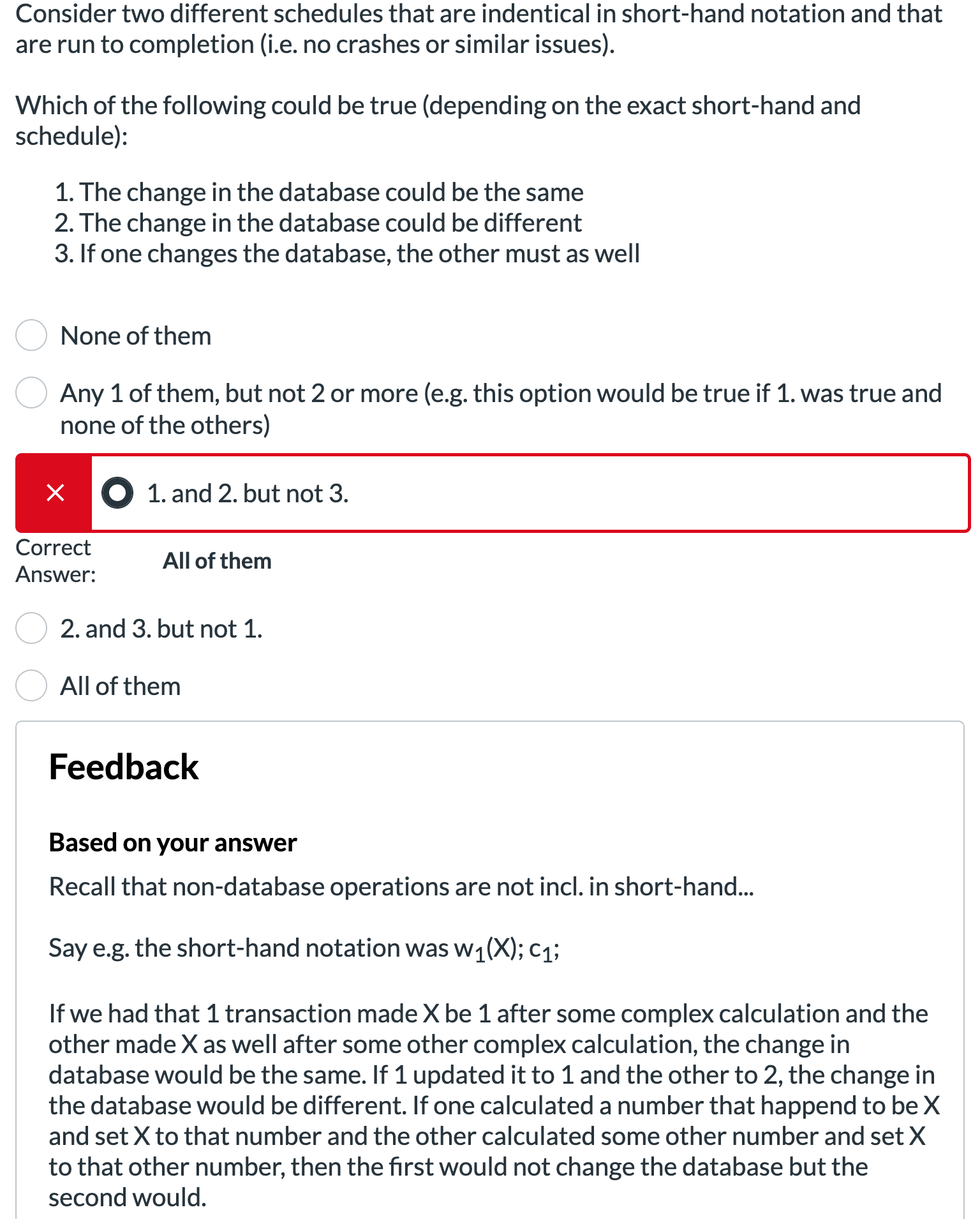

  • Q1

    1. Note, short hand notation only cares write and read operation, and ignores calculations. So two identical short hand schedule may have different result.
      alt text alt text

  • Equivalent
    Conflict equivalence focus on Order of conflicting operations. Two schedules are conflict-equivalent if:

    • They involve the same set of transactions.
    • They have the same operations in the same order for conflicting operations (read-write, write-read, write-write on the same data item).

  • Serializable

    • Best by represent precedence graph, and find the path
    • 2PL guarantees serializable. While normal locks don't.
    • Ex. S: r1(X); w1(X); r2(Y); w3(Z); r3(X); c3; c1; r2(Z); c2;
      Is NOT serial. It is not one txn after another

ACID

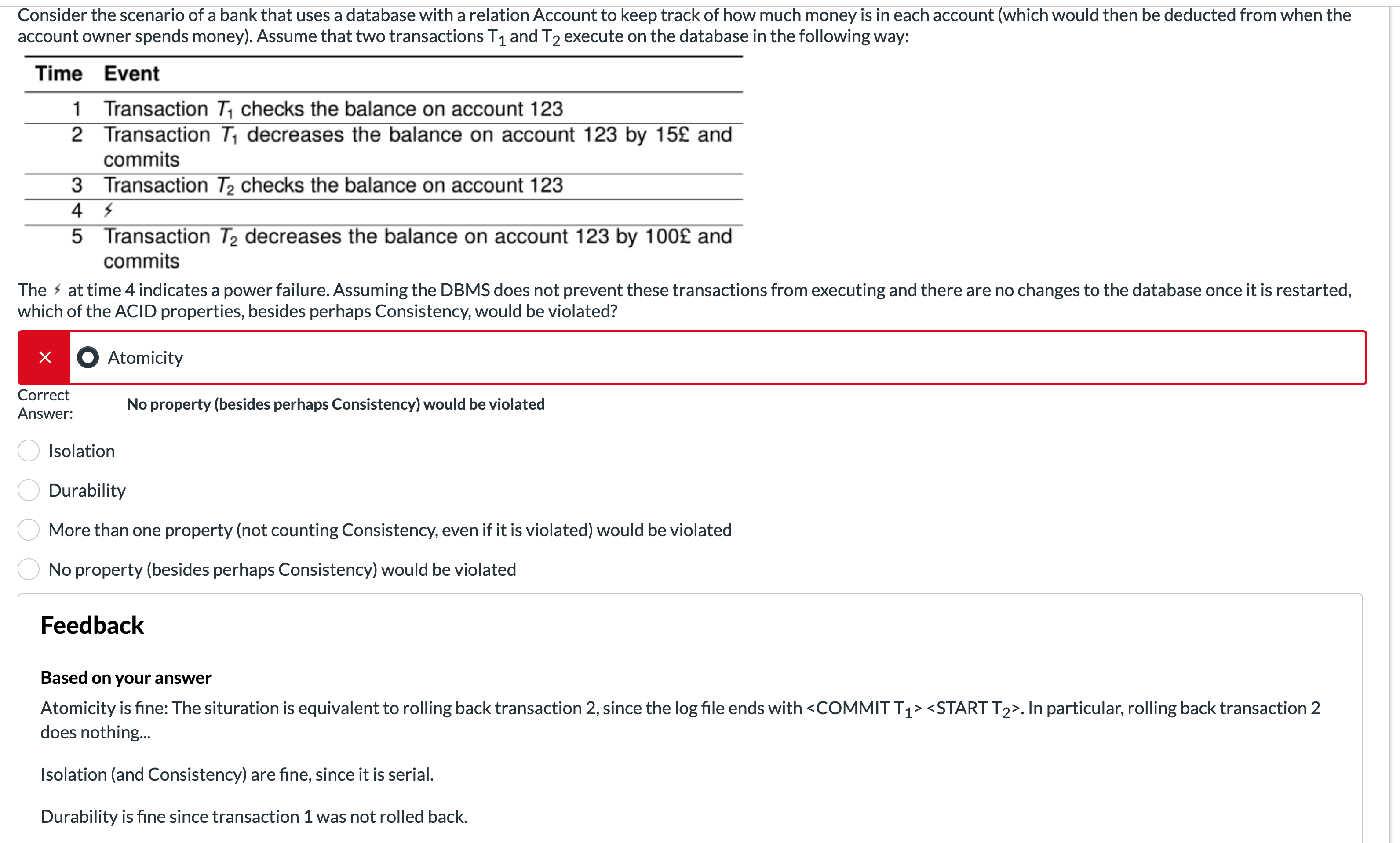

  1. Q1

    1. Pay attention to "read" or "write" operation. -- "check" or "update"
    2. By default consider all update operations are reflected to non-volatile memory
    3. Durability: Durability consider whether a update that considered as committed (by schedule or by log file) is missing.
      i.e. If the system commits a transaction but does not actually write the data (or logs) to non-volatile storage, then a power loss or crash could erase the changes. This breaks durability because the transaction’s changes are not permanently saved.
      Since in the question all updates (even half-executed) are saved to non-volatile memory (which breaks atomicity), durability is not violated.
      alt text

  2. What Ensures ACID?

  3. Isolation ensures that intermediate states of a transaction are not visible to other transactions. (Serial guarantees isolation)

    • Locks
    • MVCC

  4. Atomicity ensures that a transaction is all-or-nothing. Either all its operations are completed, or none of them are.

    • Undo Logging
    • Undo/Redo logging

  5. Durability ensures that once a transaction commits, its changes are permanent, even in the event of a system crash.

    • Logging
    • Checkpoint
    • Redo logging
    • Un/re logging

Logging protocol

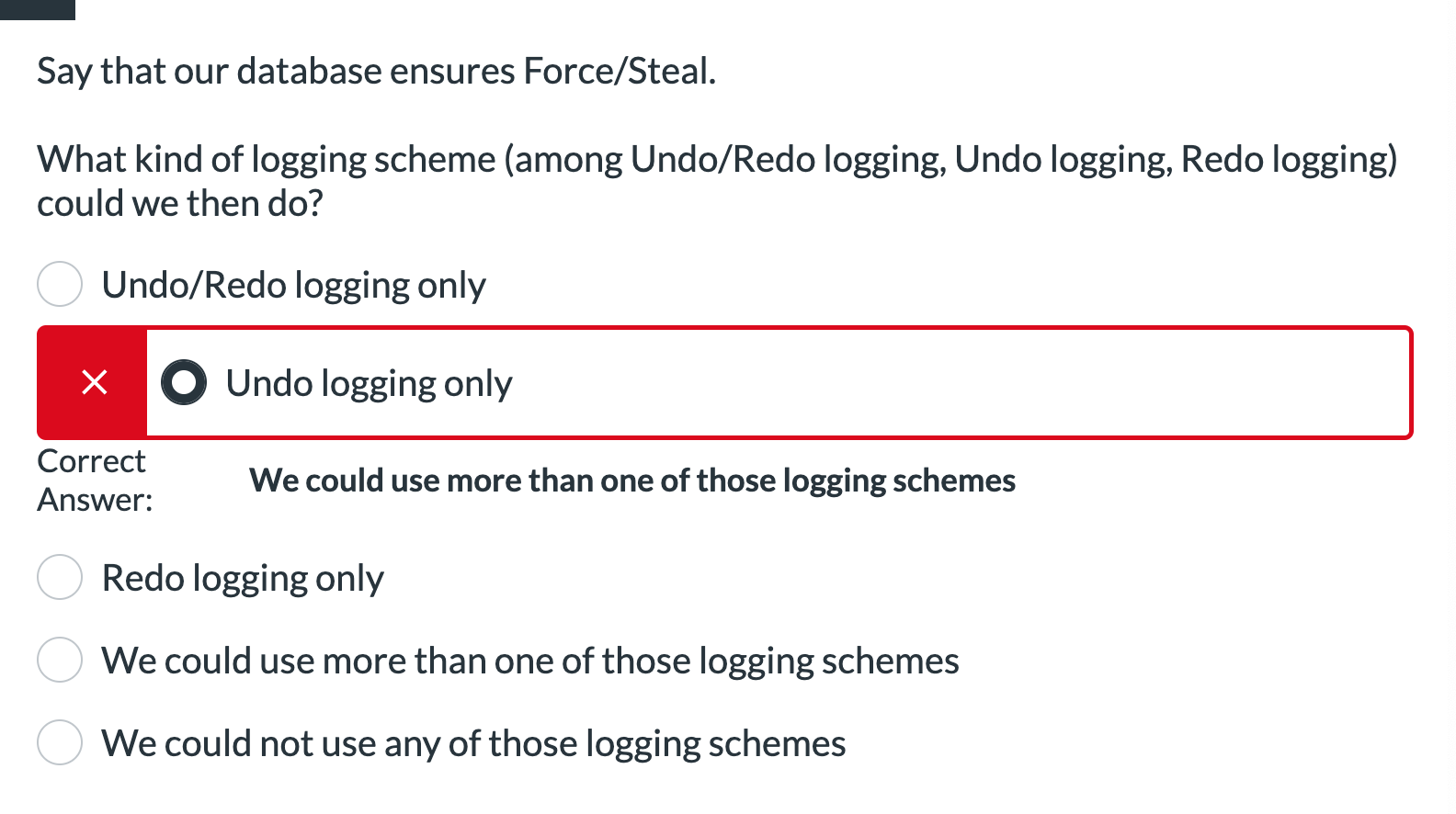

  1. Q1

    1. Undo/Redo logging -- both D & A
    2. Force -- Durability, all committed updates are forces to reflected in non-volatile
    3. No Steal -- Atomicity, NO STEAL policy ensures that dirty pages (pages modified by uncommitted transactions aka. half-done updates) are not written to disk before the transaction commits.
      alt text

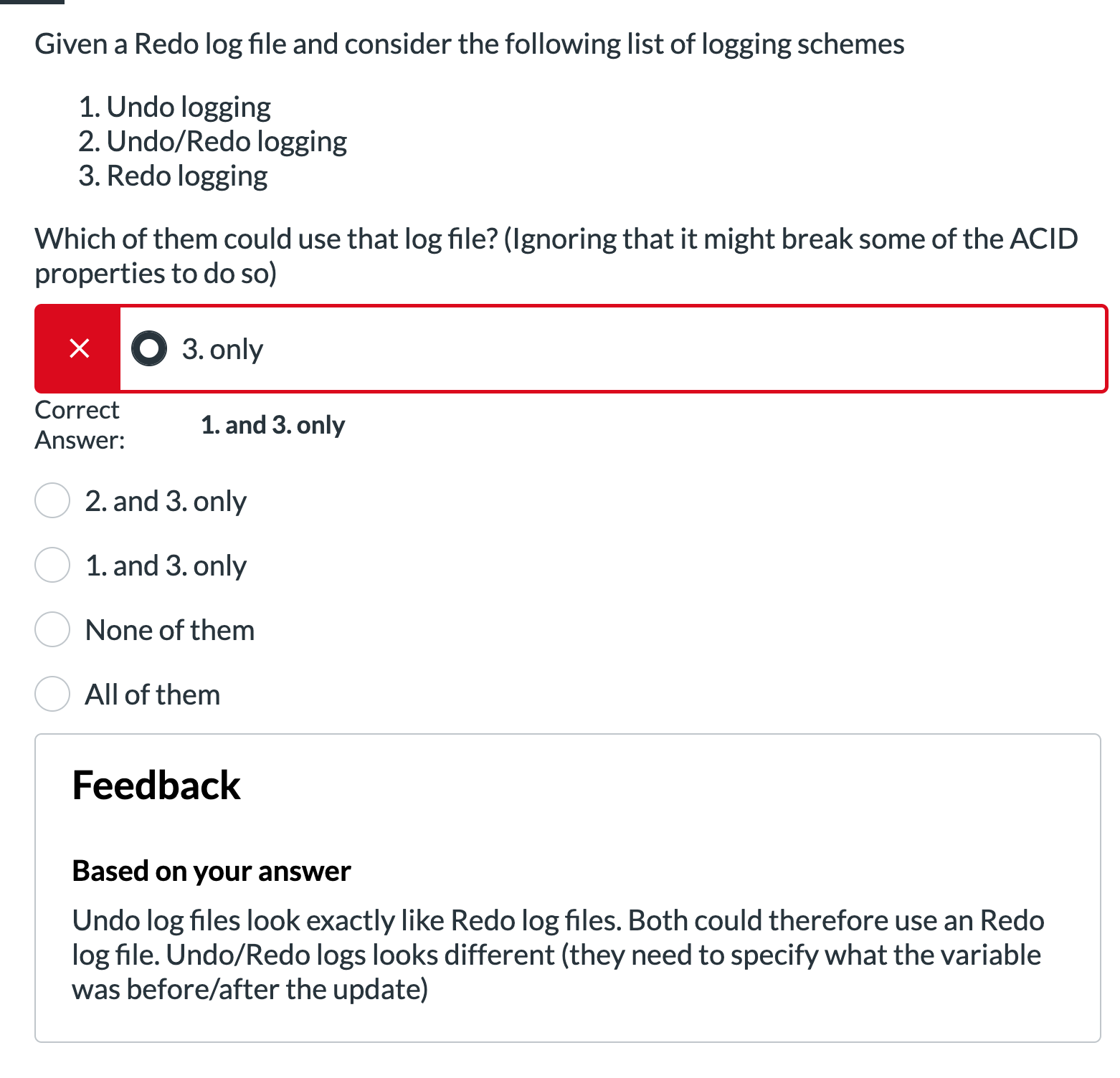

  2. Q2

    1. I think he is bullshitting.
    2. 找补: The file structure is identical, so it is possible to recover a redo log file under undo protocol.
      alt text

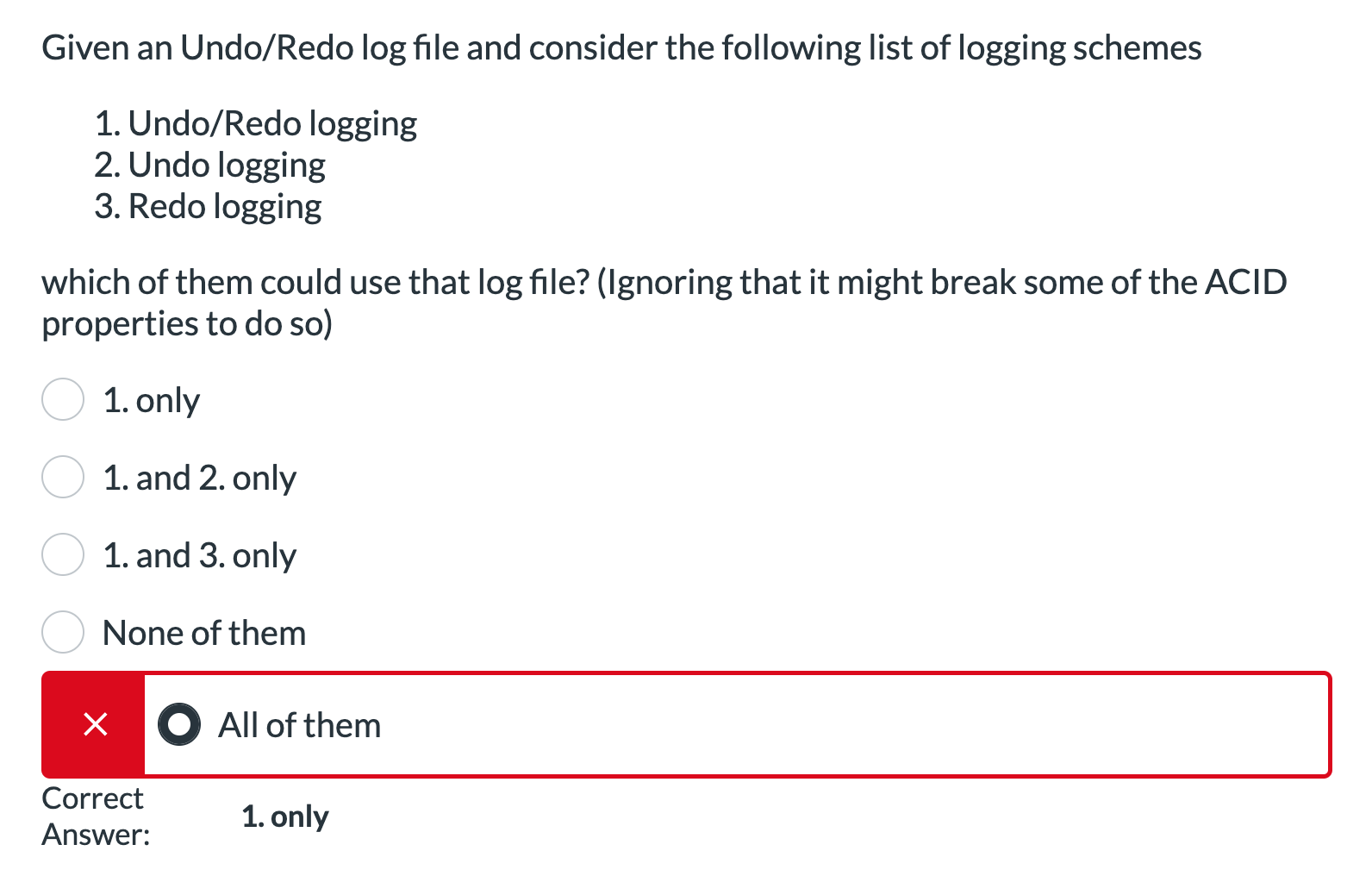

  3. Q3

    1. You can't apply redo or undo protocol on undo/redo log file since the data structure is not compatible.
      alt text

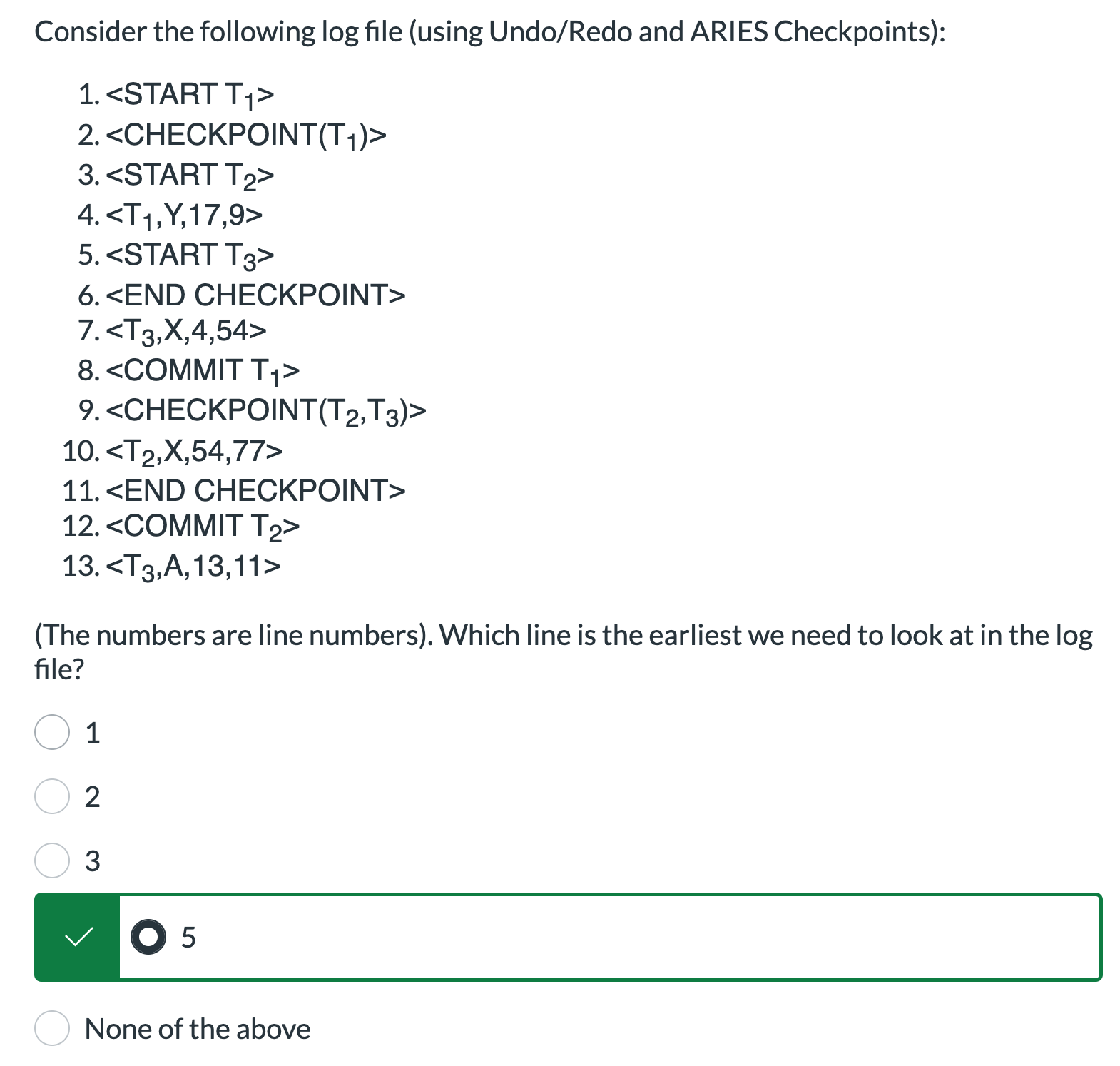

  4. Q4

    1. The expected starting log index satisfy:
      (1) CHECKPOINT & END CHECKPOINT both occurs after it
      (2) It is a Start log or the first line
      (3) It is the start log of the first uncommitted checking txn alt text

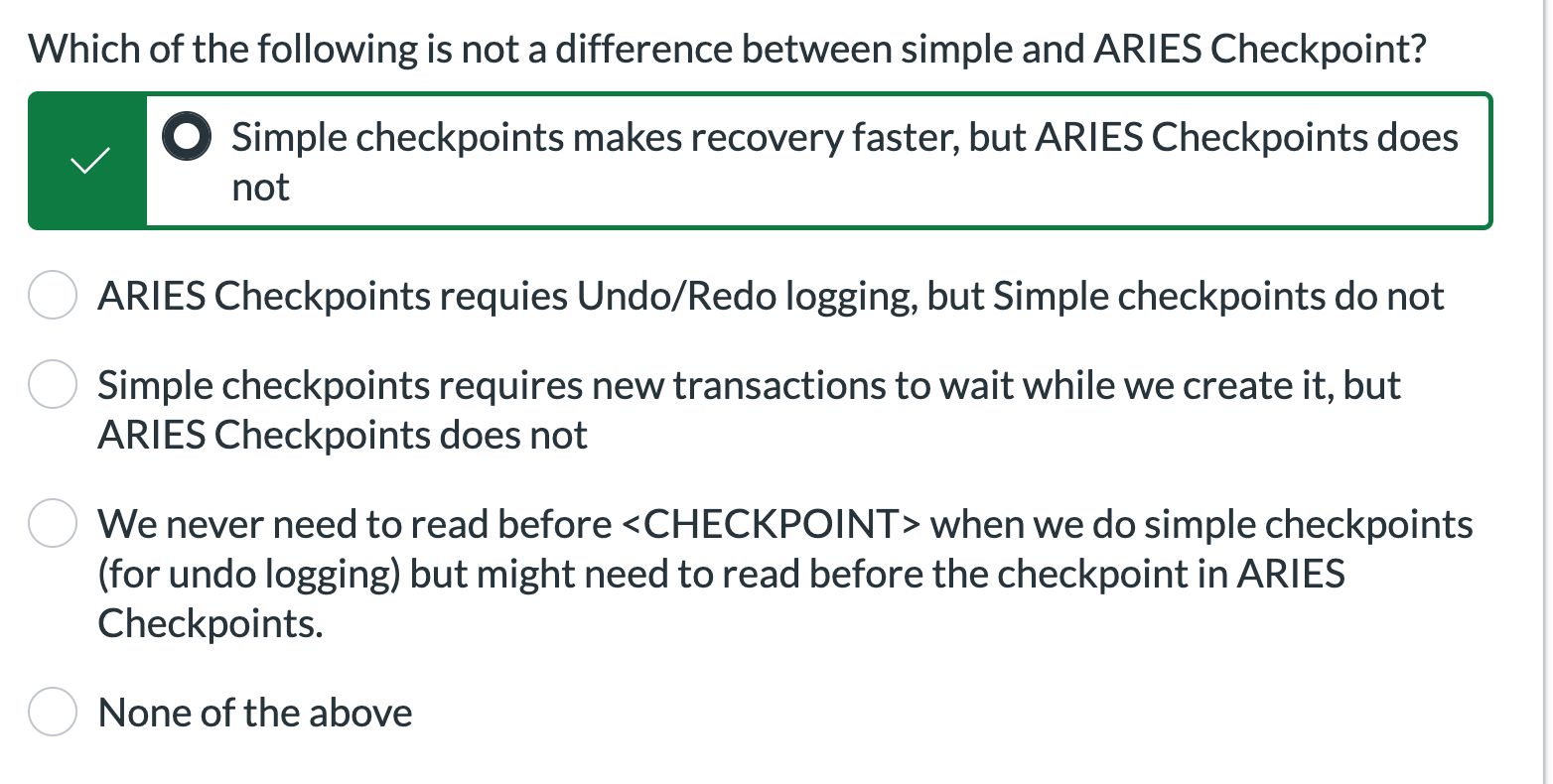

  5. Checkpoint

    1. Can be used to make the size of log file smaller
    2. ARIES checkpoint does not necessarily slower than simple checkpoints alt text

Recoverability (safety)

This part consider about recoverability, focusing on operation to one shared item, and have nothing to do with serializable.

Property Key Condition Implication
Recoverable (RC) A transaction that has read uncommitted data must commit after the writer commits. Prevents the committed transaction from depending on a later-aborted transaction.
Cascadeless (CC) No transaction reads uncommitted data (i.e., reads only committed values aka dirty read). Prevents “cascading” aborts; also implies RC (recoverable).
Strict (ST) No transaction reads or writes data written by an uncommitted transaction. Strongest condition; implies CC (and thus RC). Simplifies recovery by avoiding any use of uncommitted data.
  • Strict 2PL: All exclusive (write) locks are held by a transaction until that transaction commits or aborts.
  • Strict 2PL ensures strict schedule, but basic 2PL doesn't.
  • Strict 2PL doesn't ensure serial. Since 2PL focus on Isolation when two txn touch one item.
    You can have interleaved txns touching different items
  • Strict >> Cascadeless >> Recoverable

  • Strict >> Serializable, serializable + unlock after commit => strict

  • Example:

    • not recoverable: w1(X) r2(X) c2 c1
      (c1 might abort, thus T2 is depending on later aborted T1)
    • recoverable: w1(X) w2(X) r2(X) c2 c1.
      Since what T2 read is previously modified by itself. In other word, T2 doesn't depend on T1
    • cascading: w1(X) r2(X) c1 c2.
      Aborting T1 should roll back T2 as well since T2 depends on T1
    • cascadeless: w1(X) w2(X) c1 c2.
      Aborting T1 will not affect T2, since T2 doesn't depend on T1
    • recoverable but not serializable: w2(X) w1(X) r2(X) c1 c2
      (cyclic precedence graph)
    • Serializable but not recoverable: w1(X) r2(X) w2(X) c2 c1
      (equivalent to T2 -> T1, X is written by T1)
    • Deadlock can happen in strict schedule.
      Strict schedule and strict 2PL describe how to ensure isolation. Deadlock describe how to assign two txns to schedule. i.e. A partial schedule is strict yet has a deadlock.

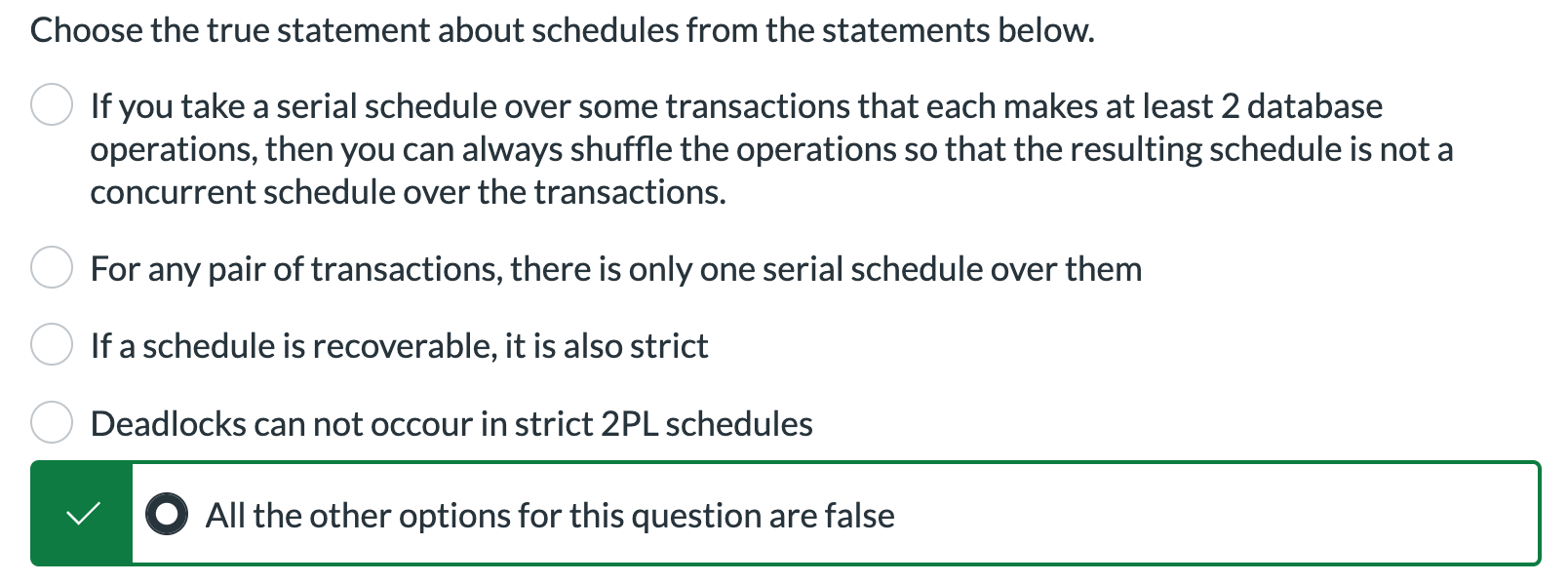

  • Question

    Deadlock May happen in recoverable schedule
    T1: w1(X) w1(Y)
    T2: w2(Y) w2(X)
    Partial schedule that lead to deadlock: w1(X) w2(Y) __ __ c1 c2 2PL lock schedule also may occur deadlock: w1(X) w2(Y) __ __
    In other word, follow (strict-)2PL doesn't mean deadlock-free
    Prevent deadlock: Timestamp-bases protocols (i.e. wound-wait), time out protocols alt text

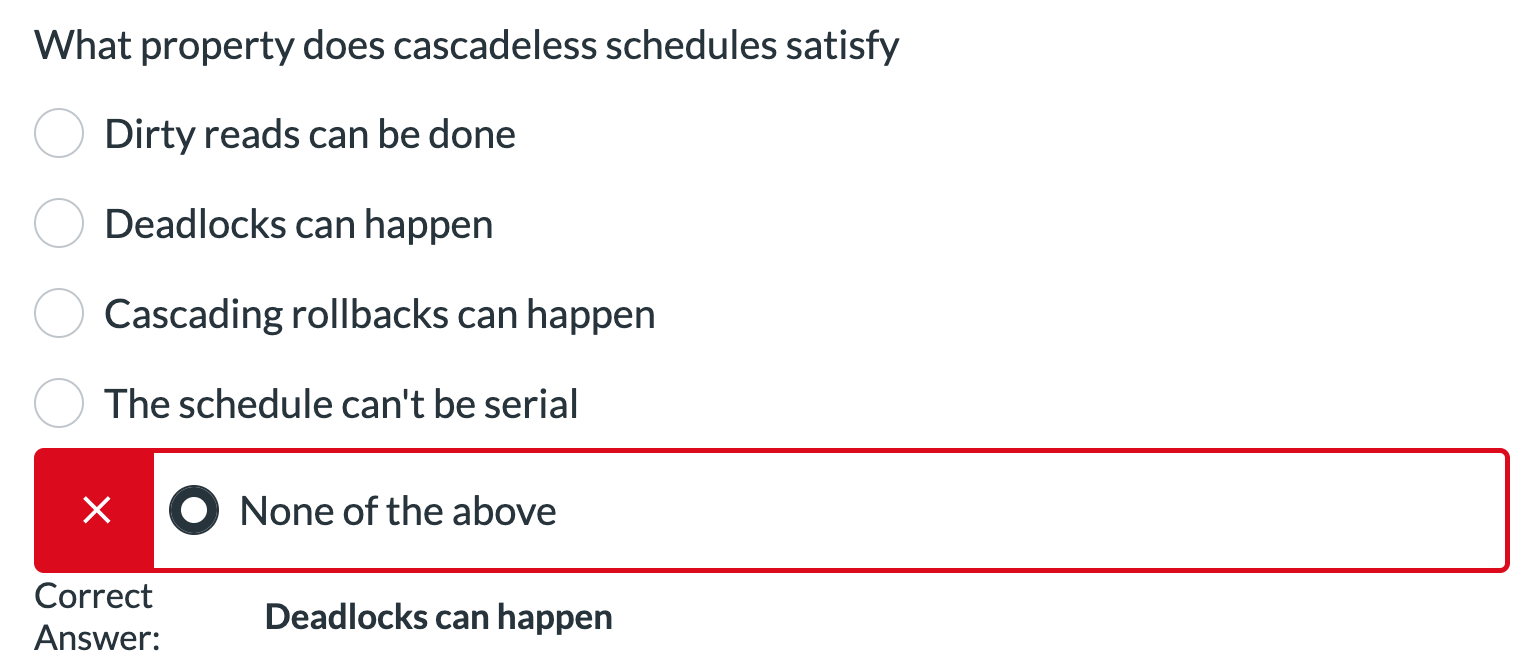

  • Additional question

    alt text

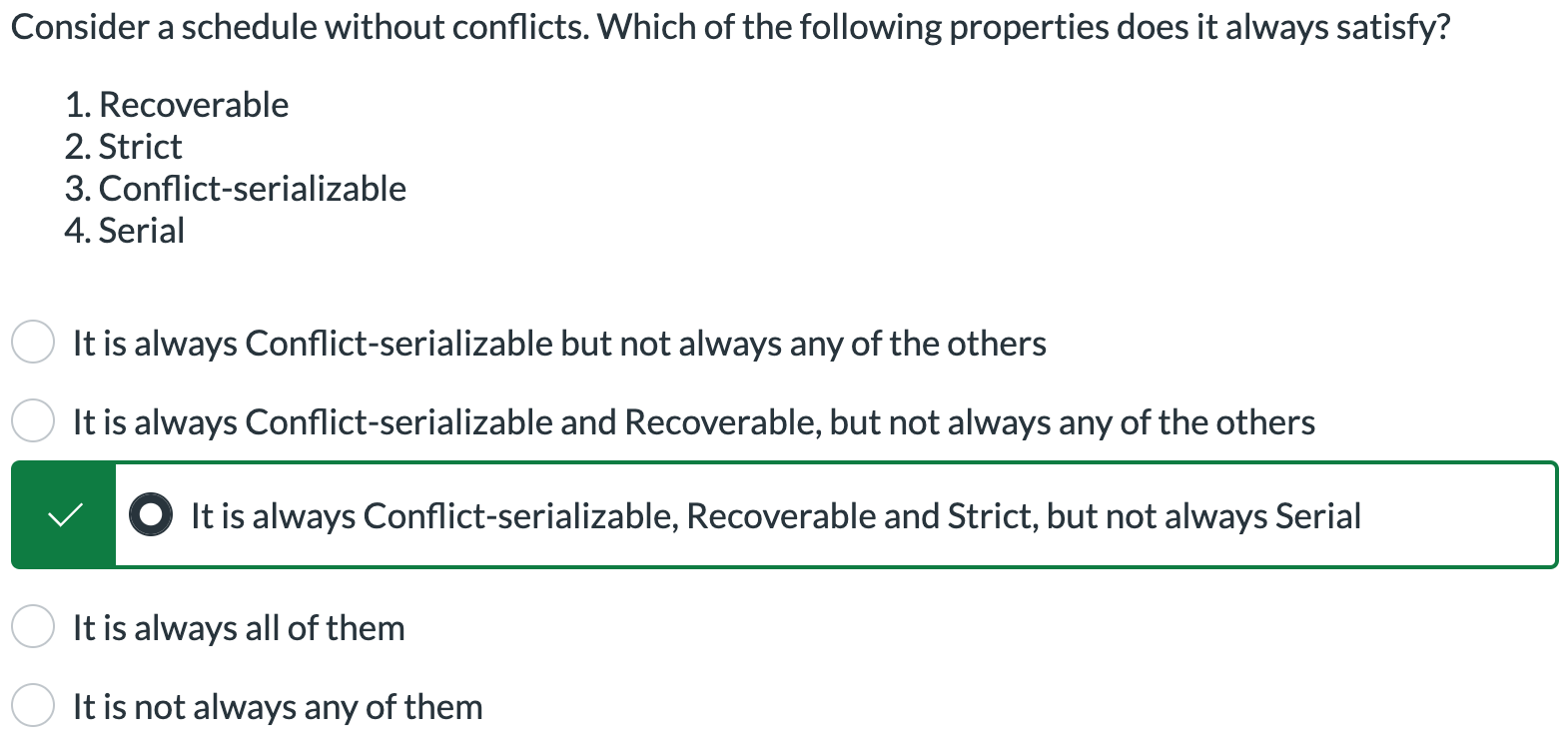

  • Question

    No conflict mean not possible for different txns to read same item, therefore no read dirty page, all strict schedule alt text

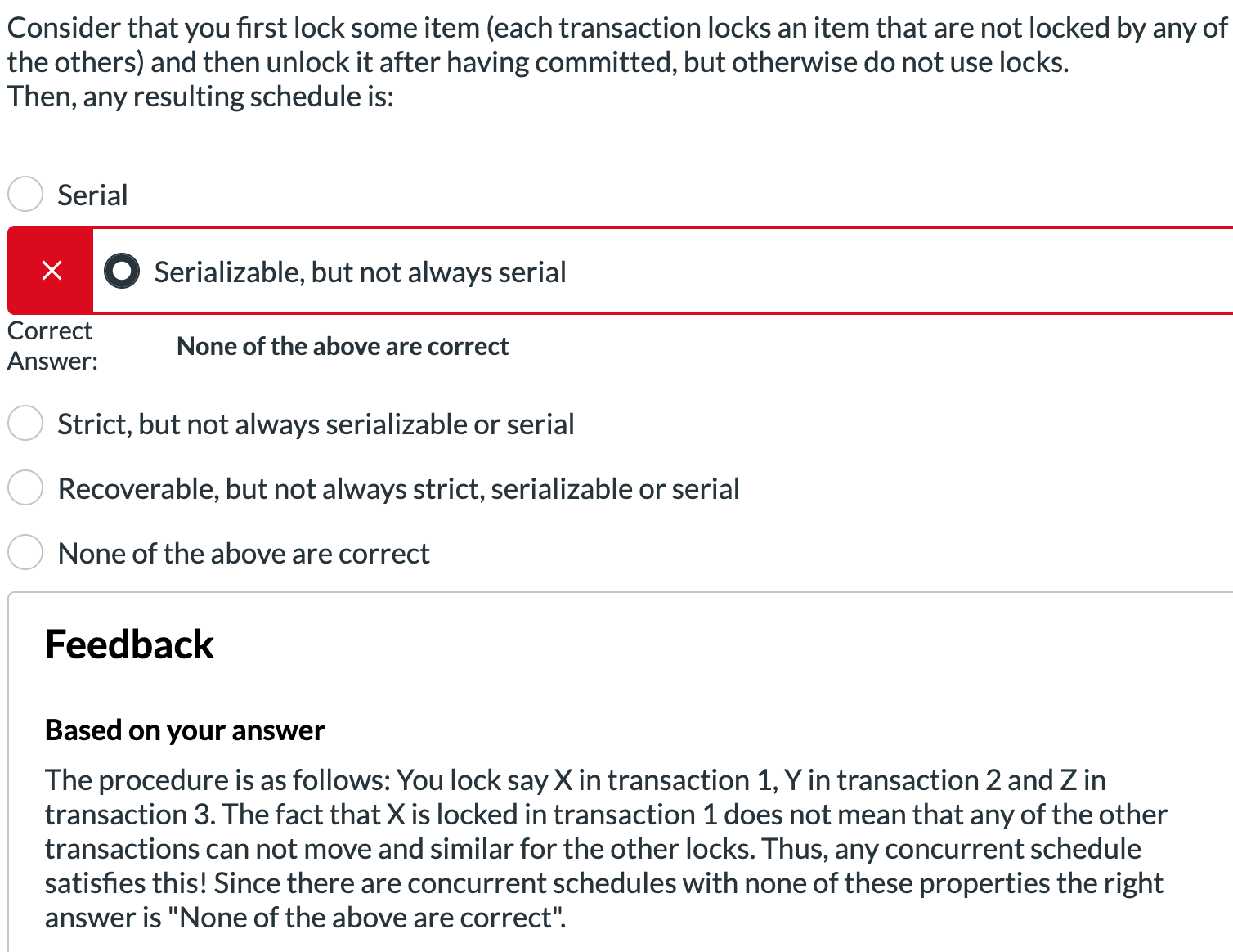

  • Question

    Serializable and strict
    I think Strict guarantees Serializability,
    since is you don't read or write uncommitted data, you naturally have all conflict operation pairs in same order.
    alt text

Timestamp

  • Deadlock detection:

    • Wait-for graph
    • Timestamp based:
      • Time-out scheme
      • Wait-die scheme (both detect & prevent)
      • Wound-wait scheme (both detect & prevent)

  • Timestamp helps Detecting deadlock and let scheduler abort some txn (same timestamp)
    This is related to lock and dependencies.

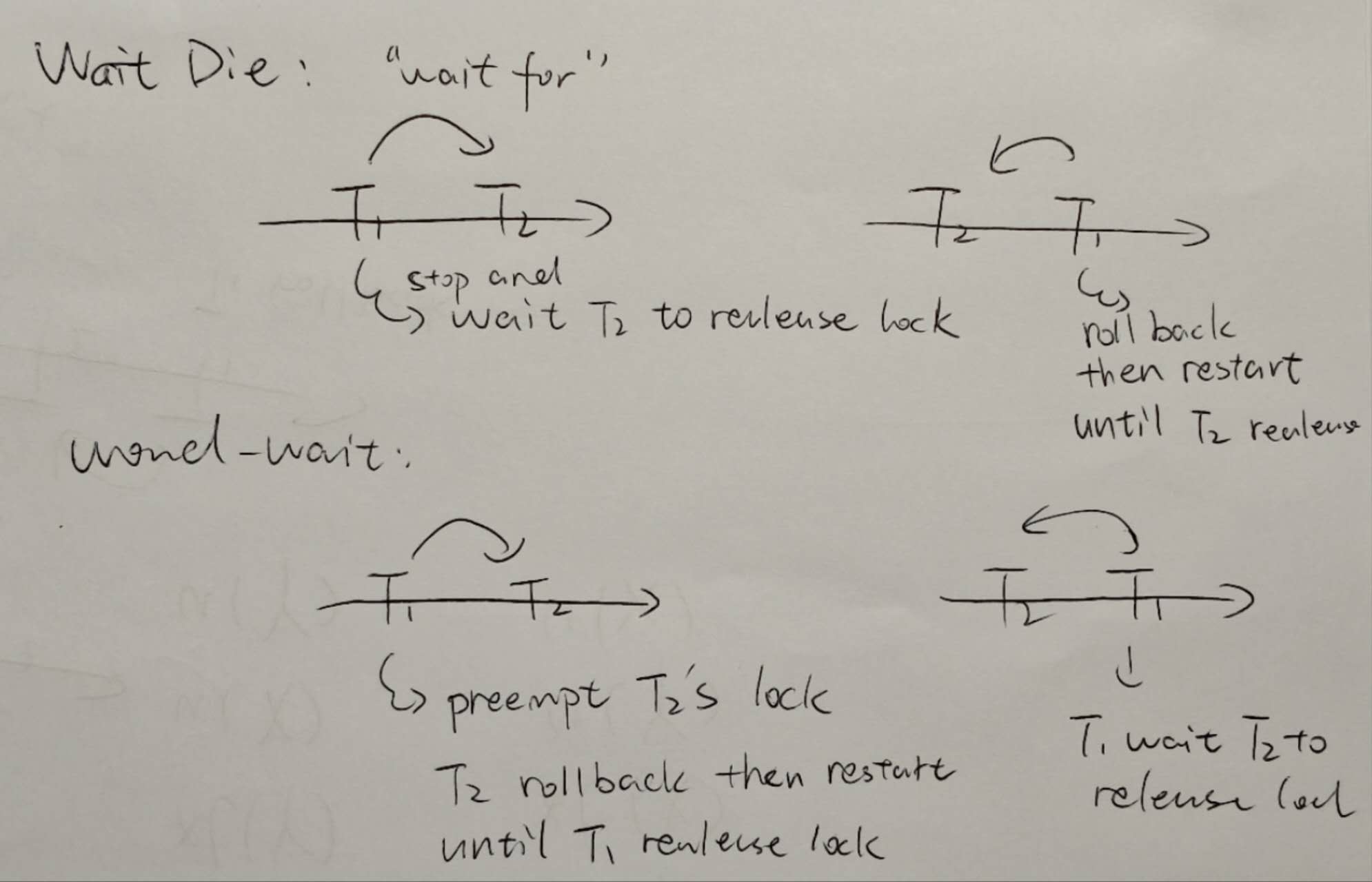

    • Wait-Die: If older waits for younger, older wait. If younger wait for older, younger roll back and abort (not allowed) (restart with same timestamp).
    • Wound-Wait: If older wait for younger, older preempts younger txn, younger roll back. If younger wait for older, younger wait.
      alt text

  • Timestamp to prevent dead lock (new timestamp)
    This only cares about timestamp

    • Prevent (abort and restart) read request of an item if it is written in the future
    • Prevent (abort and restart) write request of an item if it is read or written in the future

  • Timestamp-based scheduling

    • Pro:
      • Enforce conflict-schedule (N.B. 2PL ensure serializability)
      • Prevent deadlock

    • Con:

      • Cascading roll backs

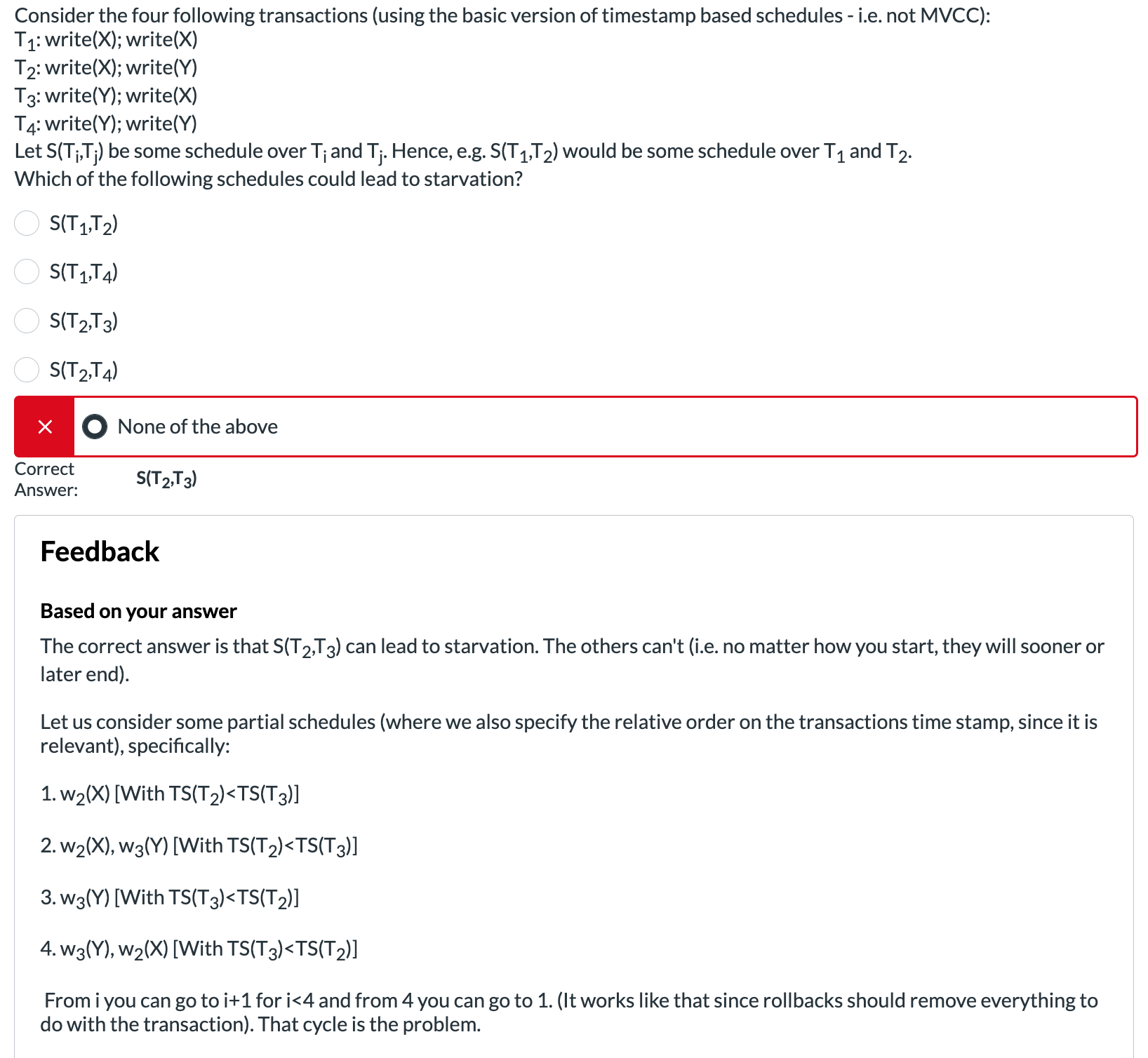

      • Starvation may occur (cyclic aborts and restart). Starvation can be prevent.

    • Timestamp based schedule may not ensure strict schedule.

      • Additional condition: Delay all read and write requests until the youngest transaction who wrote the item has committed

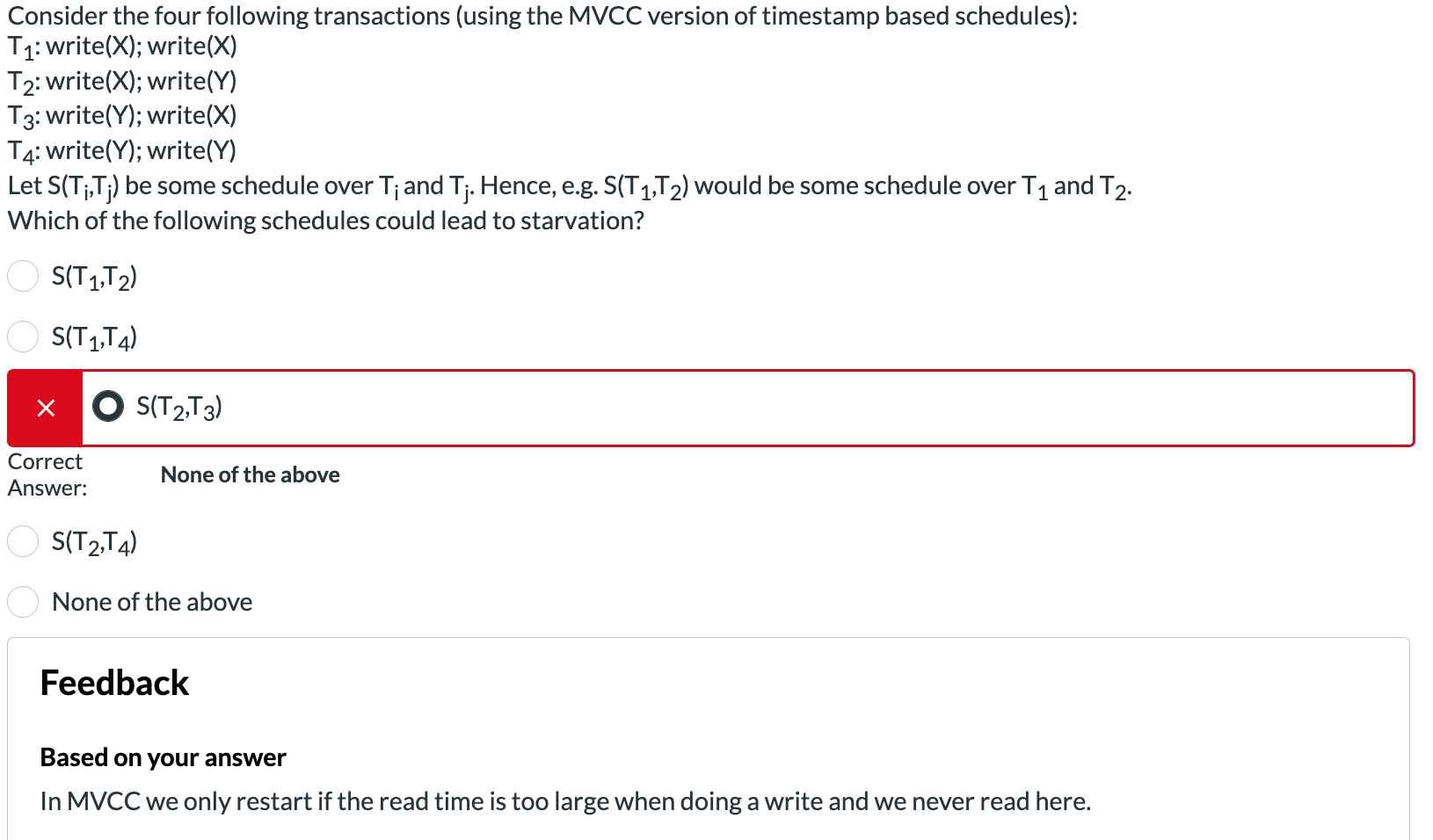

  • Q1: TODO

    alt text alt text

  • MVCC:

    • Each txn keeps a copy of dirty page
    • Grant all read request to txns
    • Grand write request only if items is NOT read in the future, otherwise abort and restart
    • There is also a strict variant, where you delay reads until the transaction you read from commits

Query Processing

Therefore, every relational algebra operation removes duplicates.

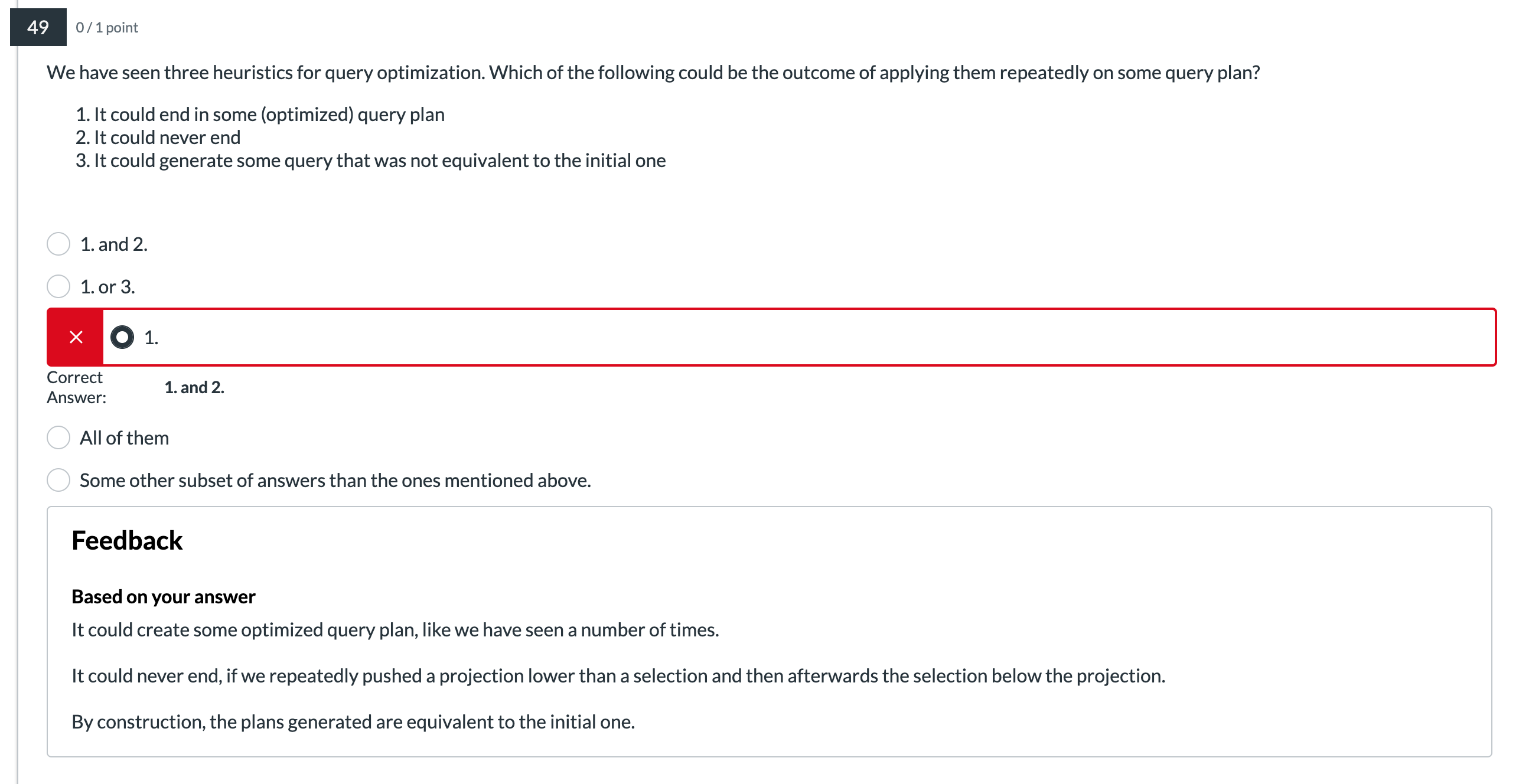

Q1

alt text

Relational Algebra

  • selection
  • projection
  • Cartesian product
  • rename

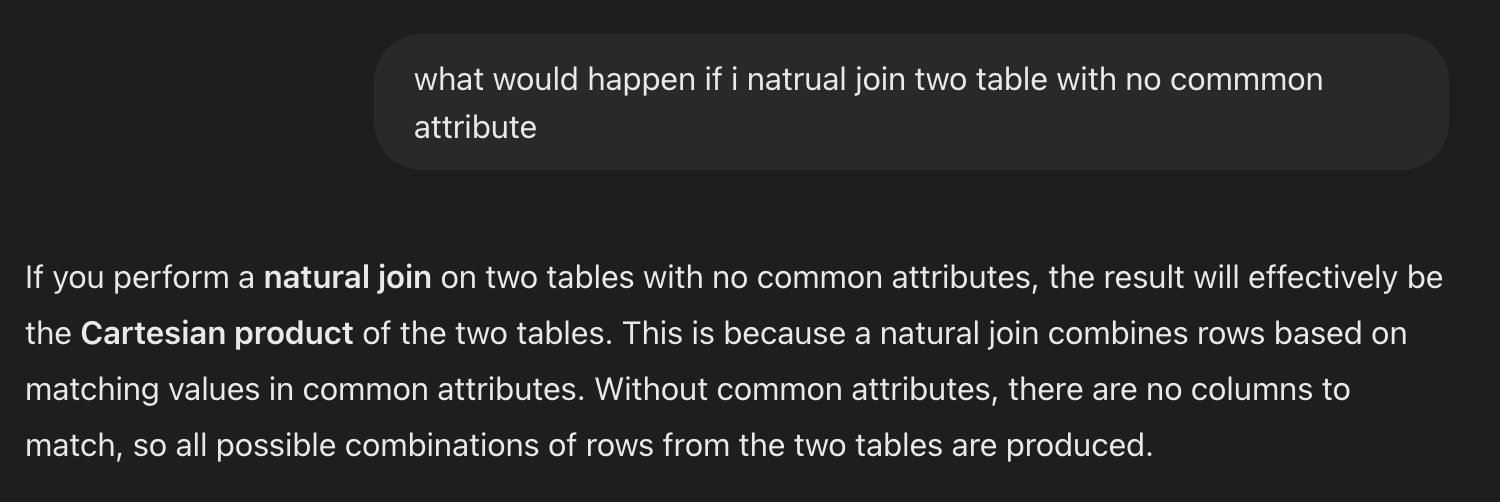

  • Natural Join \(\bowtie\)
    • Select * from R1, R2
  • Equi join \(\bowtie_{\text{ID} = \text{StudentID}}\)
    • Equijoin is a type of join where the condition uses equality (=) between columns from two tables.
    • Select * from R1 join R2 on ID = StudentID
  • Semi Join \(\ltimes_{\text{condition}}\)
    • A semijoin only includes tuples from the first relation that have matching tuples in the second relation , based on a specified condition

Selection (natural join (R1,R2)) = Natural join (selection (R1), section (R2))

Naive join

Iterate through every line in R1 and find the same values for all common attribute in R2.

Running time: \(O(|R1|*|R2|)\)

Faster Join

Merging

Goal: Compute R⋈_{A=B}S (no duplicates in join column) Method: Sort R and S, then only iterate once. Running time: \(O(|R|+|S|+size of output) + O(|R|log|R|)+O(|S|log|S|)\)

Index

Given the value for one or more attributes of the a relation, Provide quick access to tuples with these values.

Types:

  • Primary: A primary index is directly related to the primary key of a table. It is created automatically when a primary key is defined in the table.
  • Secondary: A secondary index is an additional index created on columns that are not part of the primary key. It provides an alternative pathway to retrieve data based on non-primary key attributes.

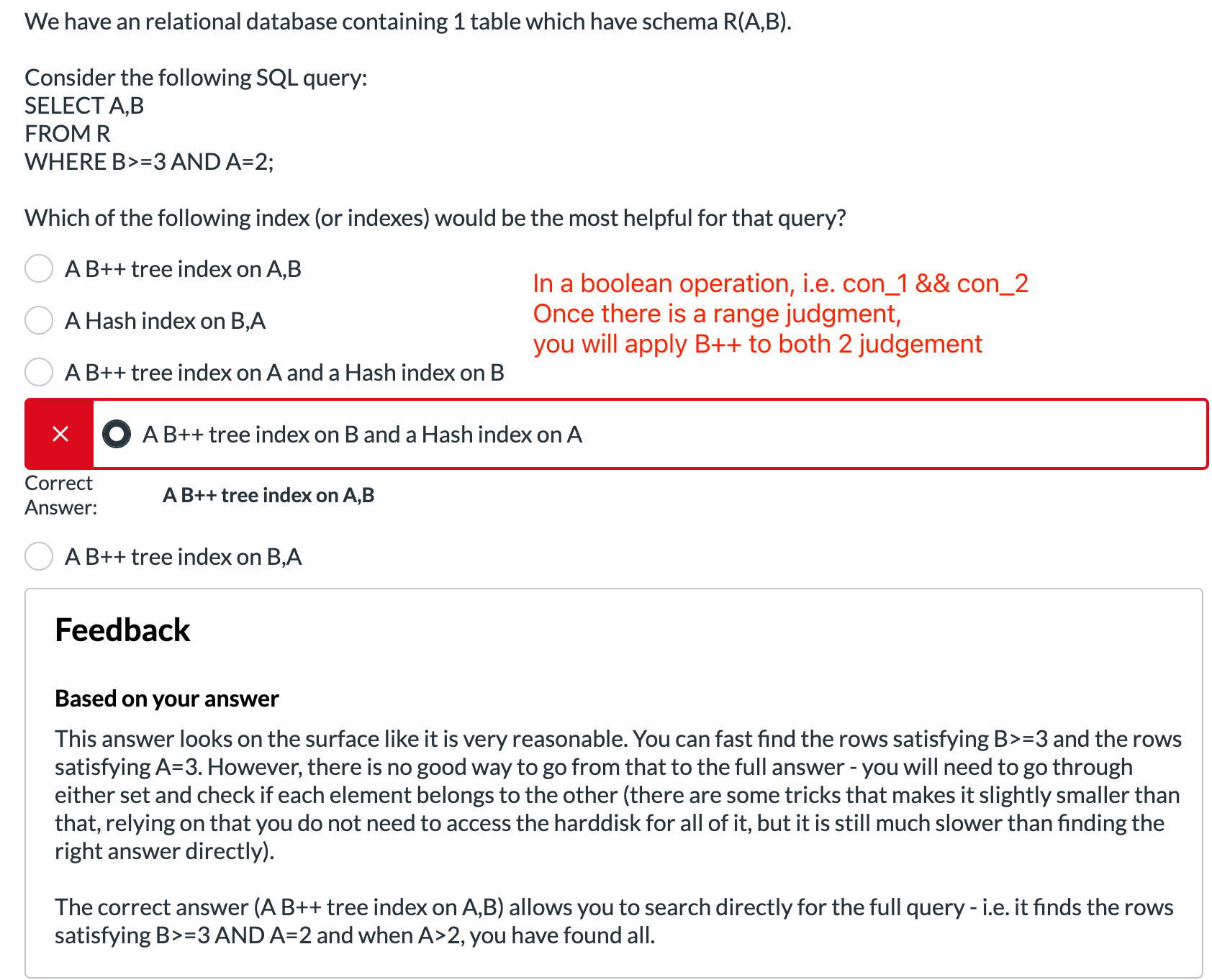

Hash index are only good for equality while B+ trees are also good for ranges. Greater or Less invoke B+-, equal invoke both hash table and B+-

alt text

Optimizing query plan

The key is to rewrite the initial query plan so the intermediate result will be smaller.

  • Push selection down to the bottom
  • Push projection down to the tree
  • Replace section of a Cartesian product with natural join

Distributed Database

Fragmentation, replication and transparency

Fragmentation - Split database into different parts that can be stored at different nodes - Horizontal fragmentation - Fragment by one or a few attributes (i.e. location), Or other conditions that are easily test - Vertical fragmentation

Users don't see fragments, just the full relations.

Redundancy improves resilience and efficiency (if you have query on Database that stores exactly what you want)

Replication:

  • Full replication
    • Each fragment is stored at every site (No fragments)
    • Faster query answering
    • Slow when updates
  • No replication
    • Crash is catastrophic
  • Partial replication

Transparency

There were different levels (types?) of transparency

  • Fragmentation transparency.
    • Users can access data without knowing whether it is divided (fragmented) across multiple locations.
  • Replication transparency.
    • Users are unaware of whether multiple copies (replicas) of data exist.

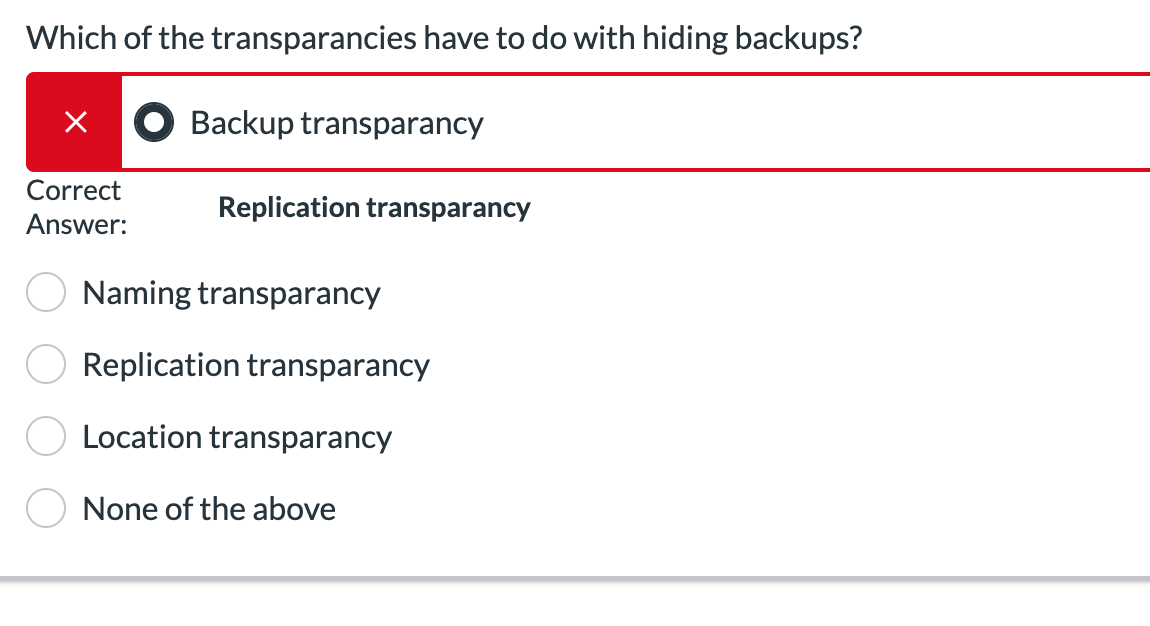

    • Backup is a copy of data.
      alt text
  • Location transparency.
    • Users or applications can access data without needing to know the physical location of the data
  • Naming transparency.

Transaction management in distributed database

Voting!

Transactions in D-DBMS

The central note instructs other note to make transactions. However, If there is a feeling note, Automate will be violated globally.

Distributed commit

2 phase commit protocol

There will be a coordinator. They decide if and will local transaction can commit.

Logging is recorded at each node locally. Message sent and retrieved from other nodes are logged too.

Rule:

  • Phase 1: Decide when to commit or abort
    • The coordinator send a "PREPARE" request to all participating nodes.
    • Each note checks if it can commit the transaction and response yes or no.
  • Phase 2: Commit or abort
    • If all node vote "yes", The coordinator sends a"COMMIT" Message and all nodes commit the transaction.
    • If any node votes "NO", the coordinator sends an "ABORT" message and all node abort

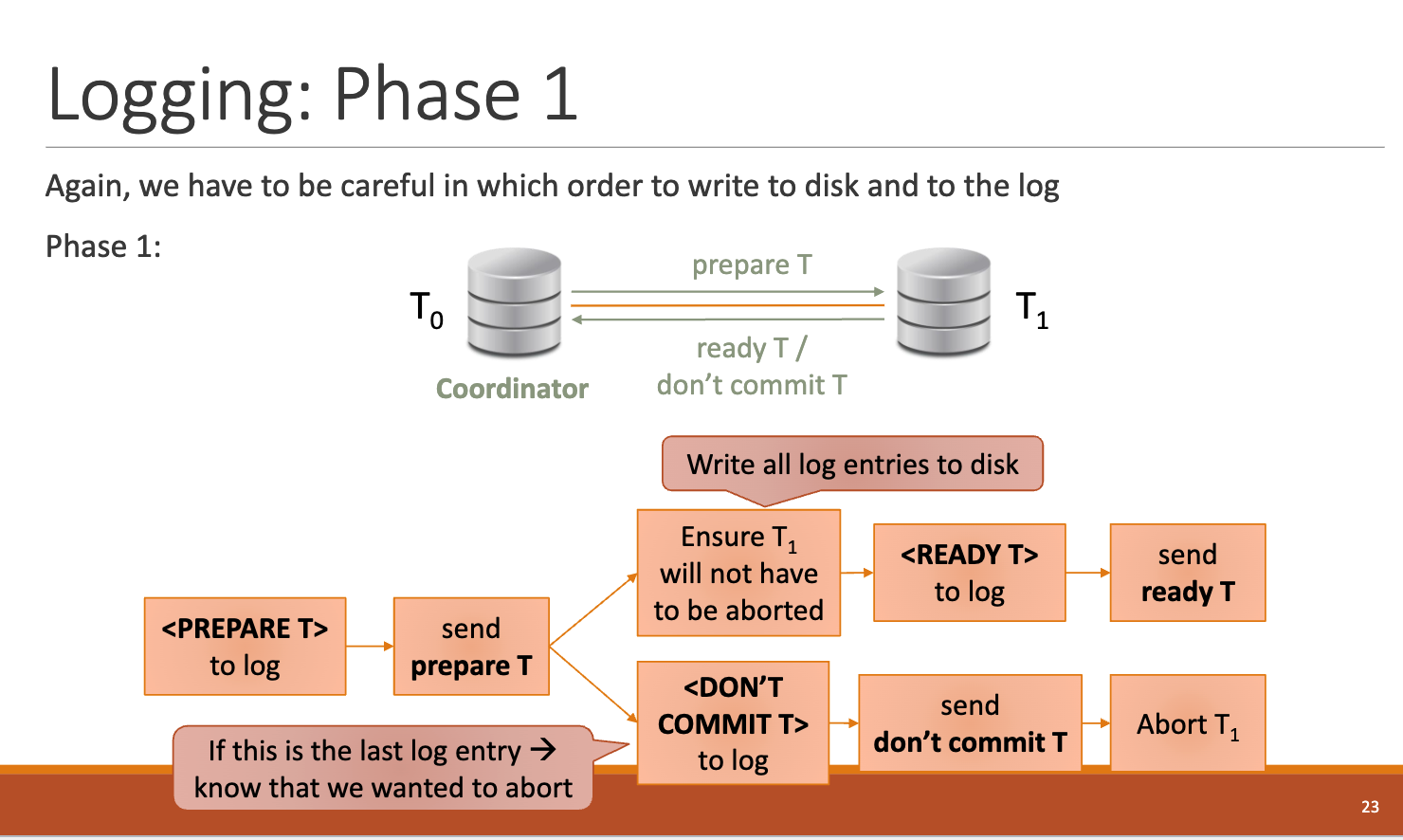

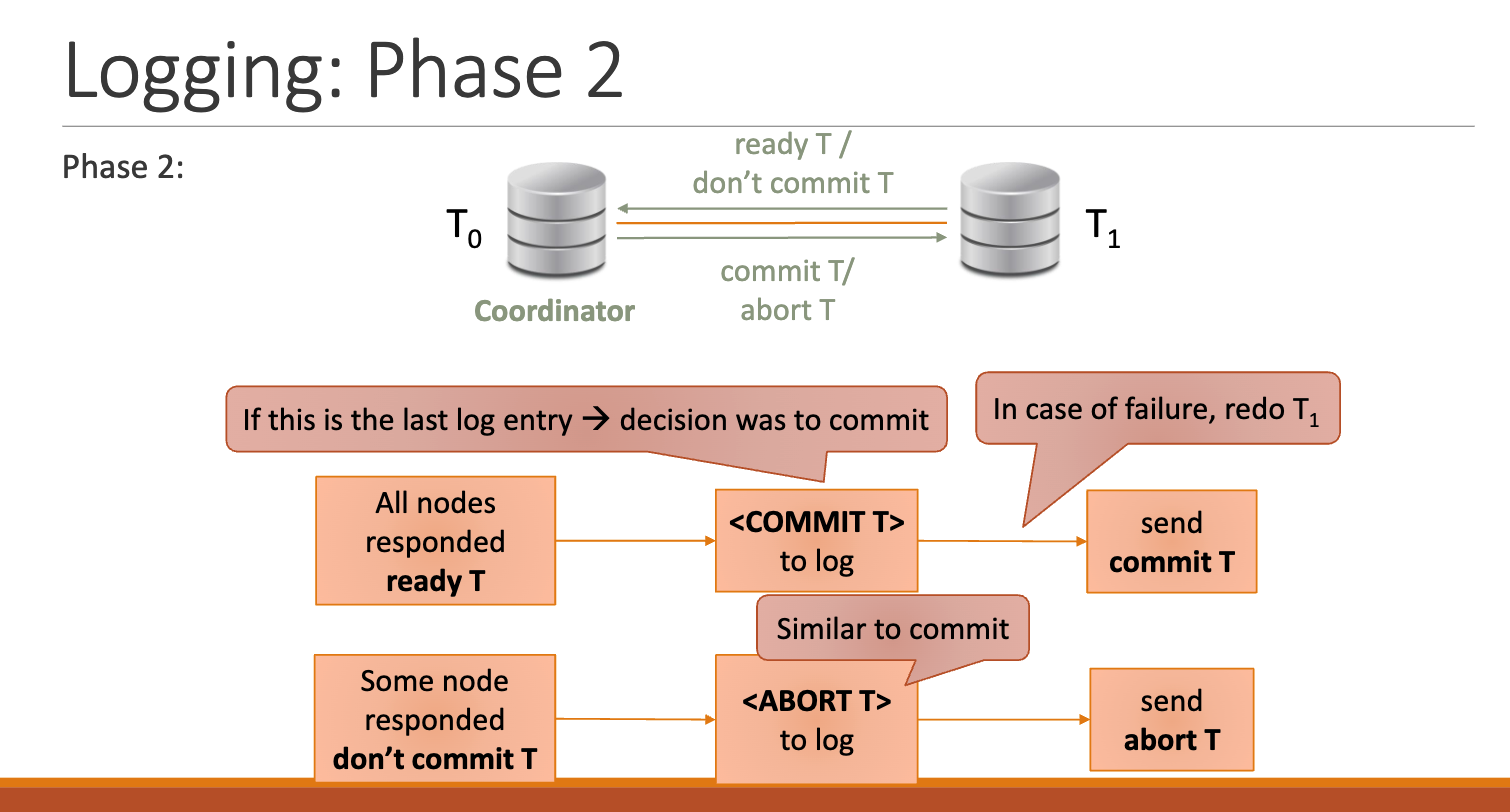

Logging rule:

alt text

alt text

Query in distributed database

Cost on message transition in high and slow.

So we want to transfer as less data as possible

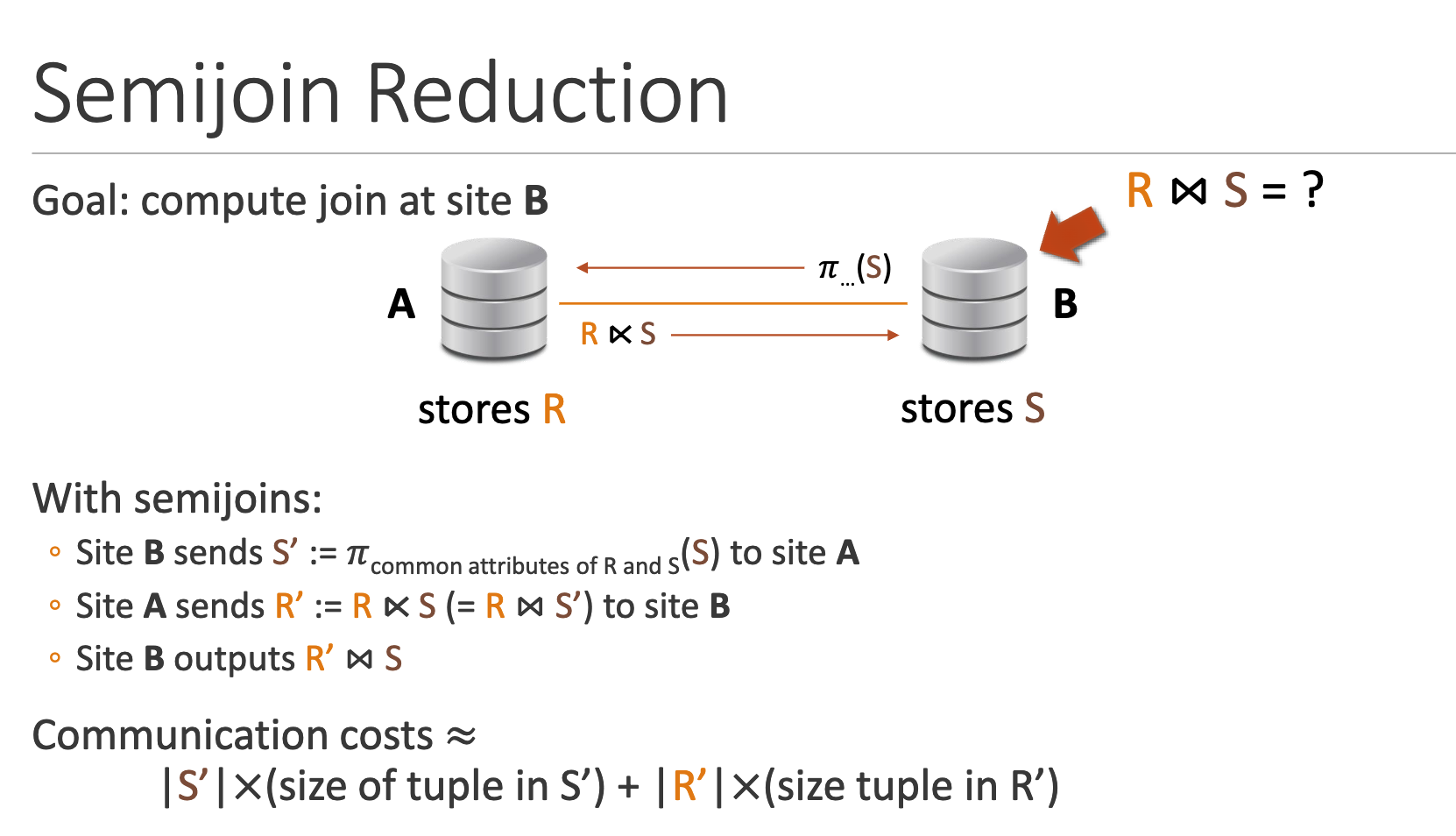

Semi join

Definition:

\[R\ltimes S = R \bowtie (\pi_{\text{common attributes}}(S))\]

alt text

Applicable when \(|\pi_\text{common attributes} (S) + |R\ltimes S|\) (S' + R') is smaller that \(|R|\) (transfer R directly)

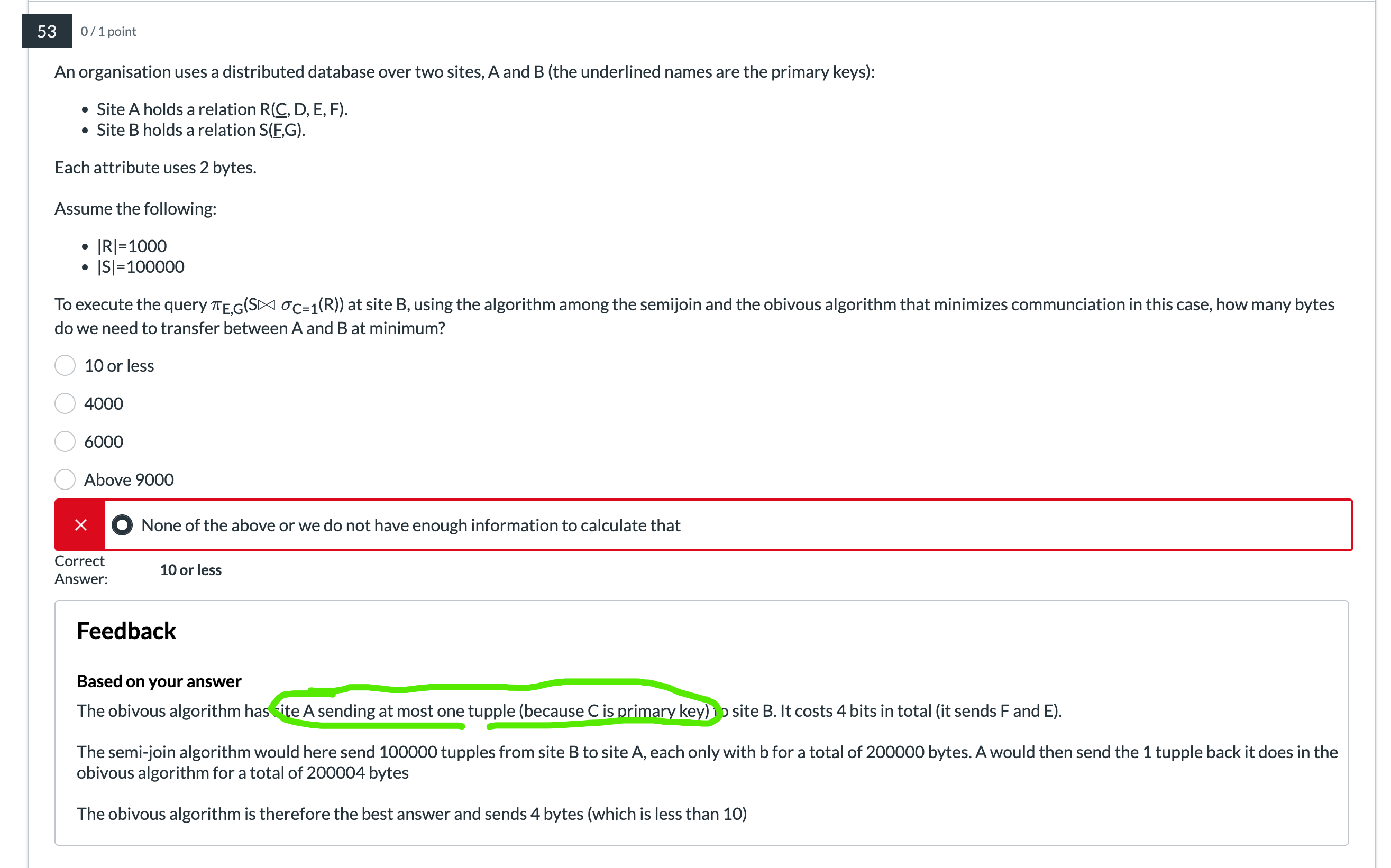

Q1

alt text

Semi-structured data

Semi structured data

Tree-like :

  • Leaf node: associated with data
  • Inner node: No data associated. Has labelled edges going to other nodes
  • Root: each node reachable from root

XML

XML forms a tree-like graph, not allow child with multiple parents

XML file

  • Tag (opening & closing)
  • element
    • i.e. <keyword> arbitrary text </keyword>
    • Elements may be nested, nesting must be proper
    • Root element is contained by no one
    • Case-sensitive
    • May be empty, in short notation: <keyword/>
  • Attributes
    • Elements can have attributes
    • i.e. <module code='COMP207' title='DBMS'/> -- empty element with 2 attributes
    • You cannot have <module code='COMP207','COMP201' title='DBMS'/> -- only one attribute of a given name
    • When to use attributes or sub-elements:
      • Staff ID of lecturer (either OK)
      • Email address (not suitable for attr since I have more than one email)

Order

Elements in an XML document ordered as they occurred in the document

Store XML in relational database

  • store XML file as attribute
  • shred XML attributes, then store each (in shredded form)
  • store a schema-independent form
    • Each row is an attribute, i.e (parent, child, datatype, data)
  • Storing the full XML tree in the database

DTD document type definition

<!ELEMENT bookstore (book+)>
<!ELEMENT book (title, author, price, year?)>
<!ELEMENT title (#PCDATA)>
<!ELEMENT author (#PCDATA)>
<!ELEMENT price (#PCDATA)>
<!ELEMENT year (#PCDATA)>
<!ATTLIST book b_id ID #REQUIRED>
<!ATTLIST book category (fiction | non-fiction | sci-fi | fantasy) #IMPLIED>

ELEMENT

  • #PCDATA a symbol for text data
  • + one or more
  • * any would ok
  • '?' zero or one
  • otherwise appear only once

ATTLIST

  • #IMPLIED optional
  • #REQUIRED
  • #FIXED
  • data type
    • CDATA: character data, text
    • ID: data type for id. Allows unique key to be associated with an element. i.e. @b_id="1" or @b_id=1 both work
    • IDREF/IDREFS: reference to a ID attr
    • Enumerated type

Validating

  • Well formed: conforms to structural format
    • Tested by Non-validating processor
    • Only one root
    • Branches and leaves no overlap
  • Well formed + DTD conformation
    • Tested by validating processor

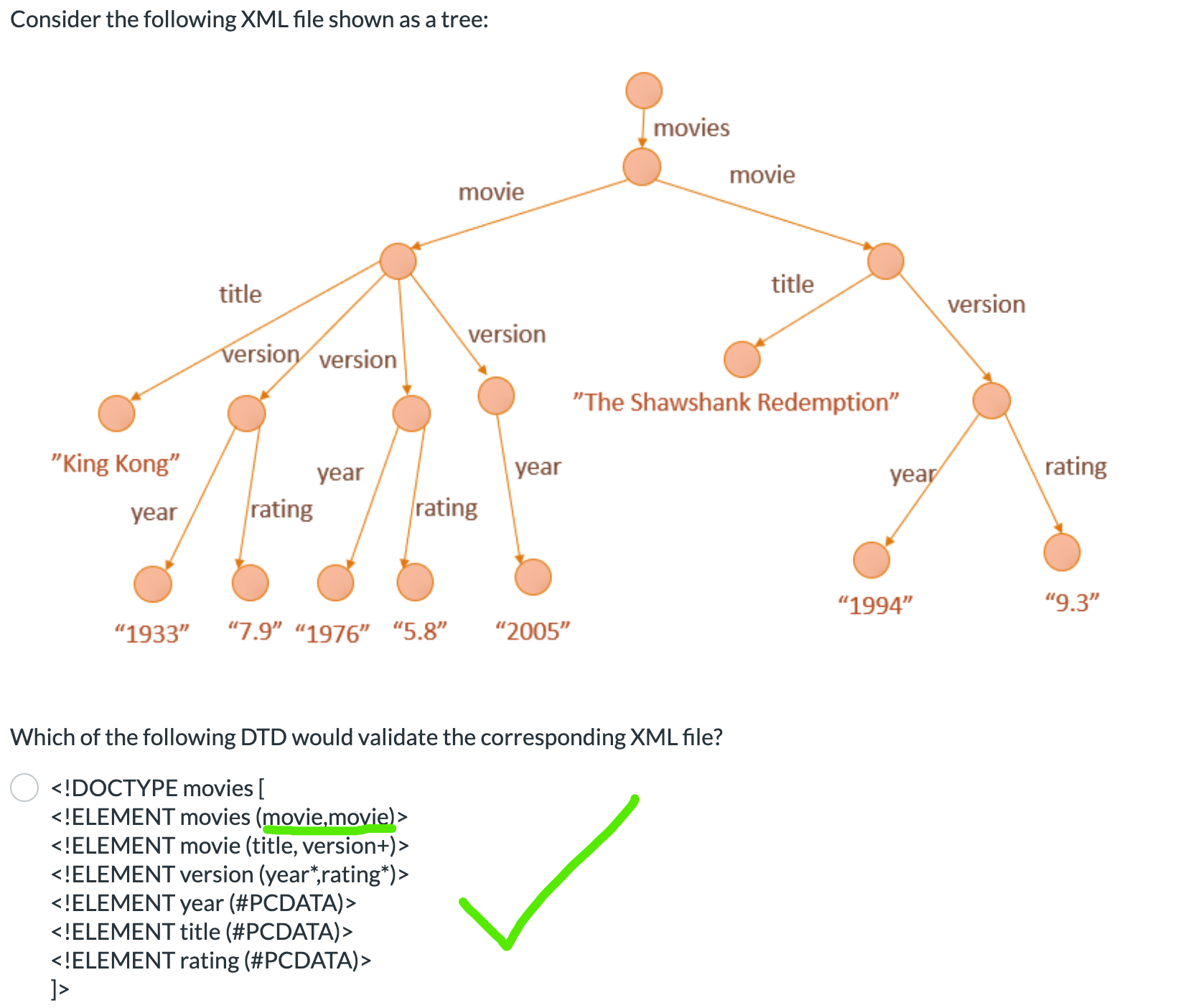

Q1

alt text

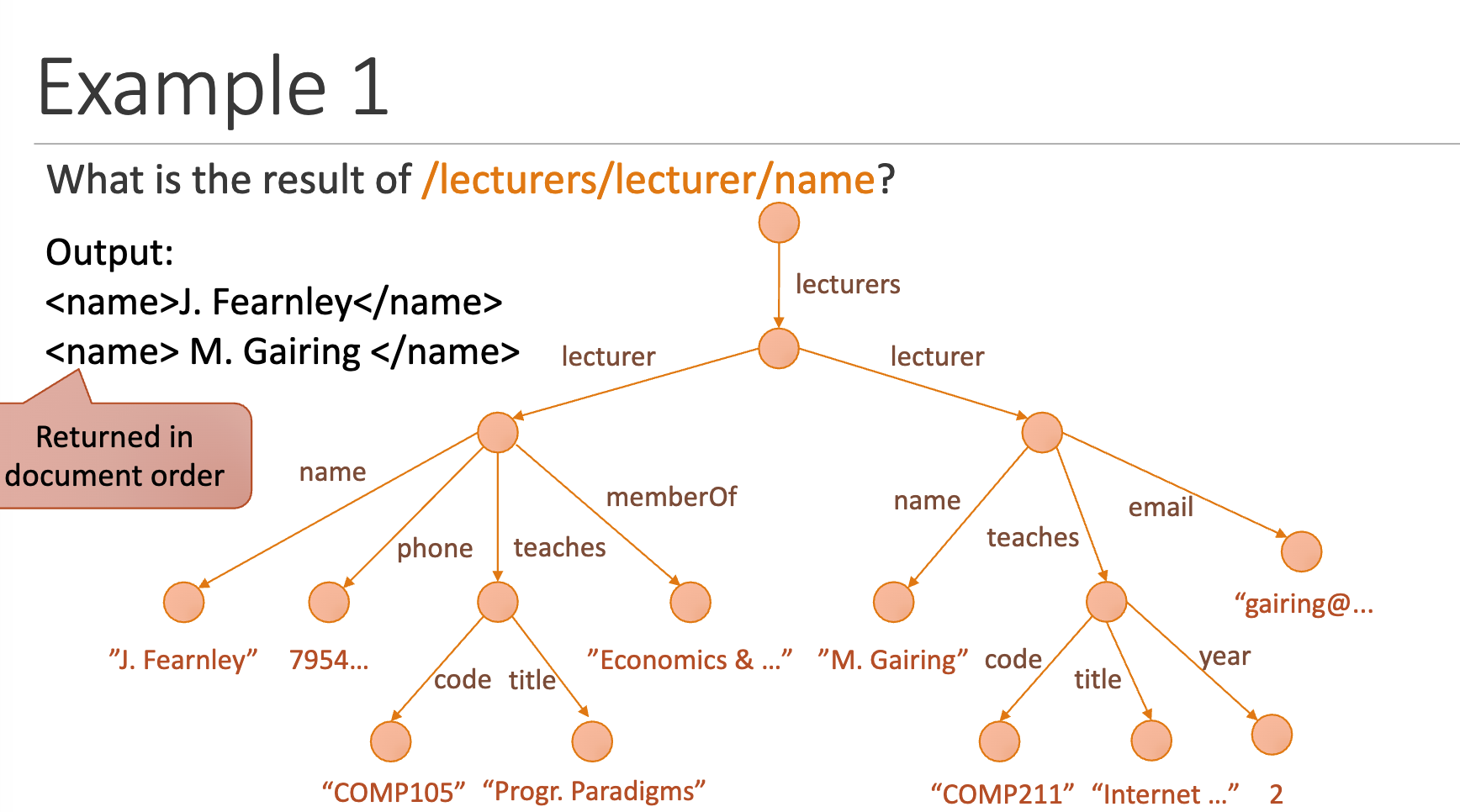

XPath

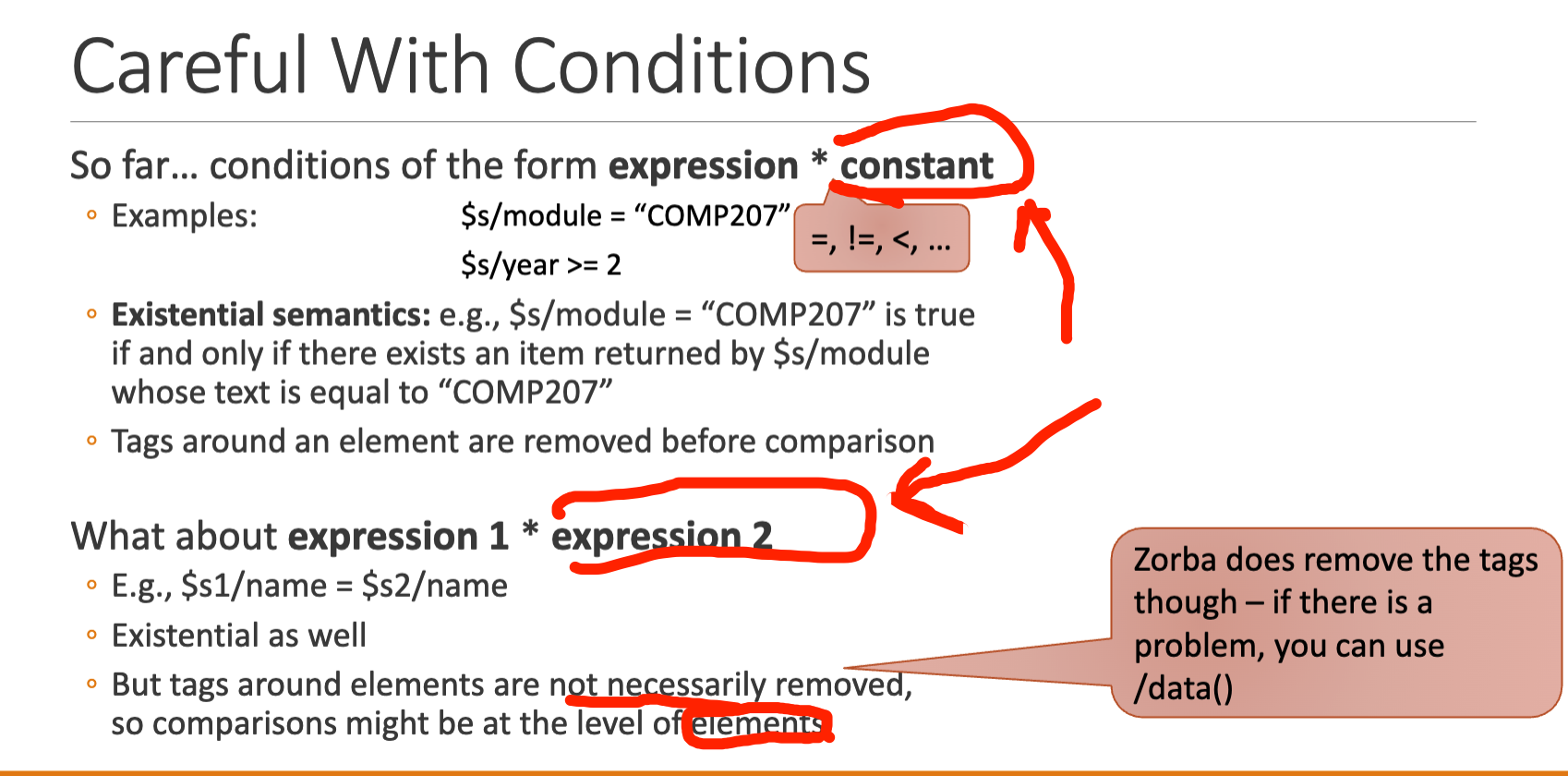

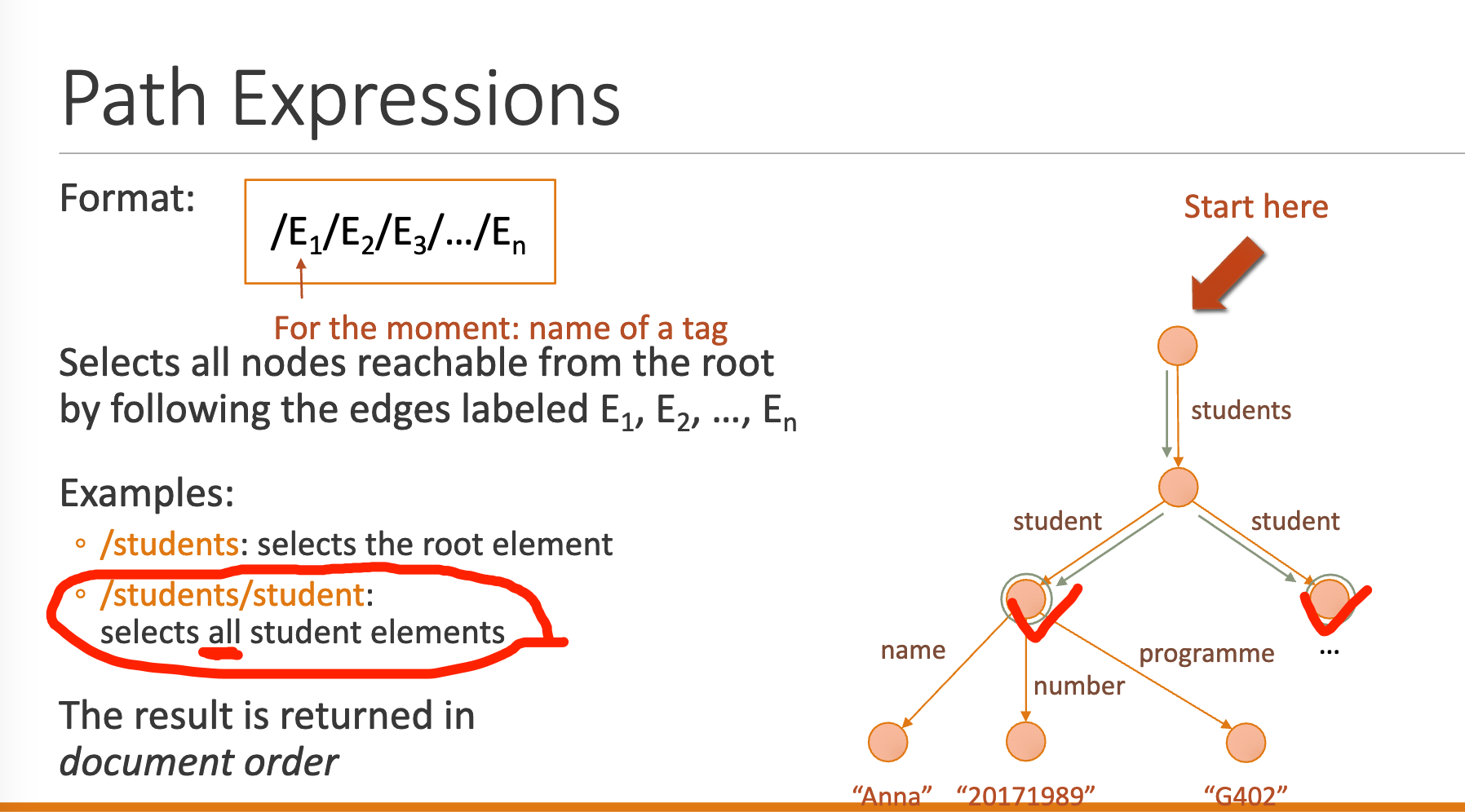

XPath allows us to write queries that return a set of values or nodes from an XML document.

The result is returned in document order

alt text

alt text

  • Attribute: books/book[@id=1]/@category

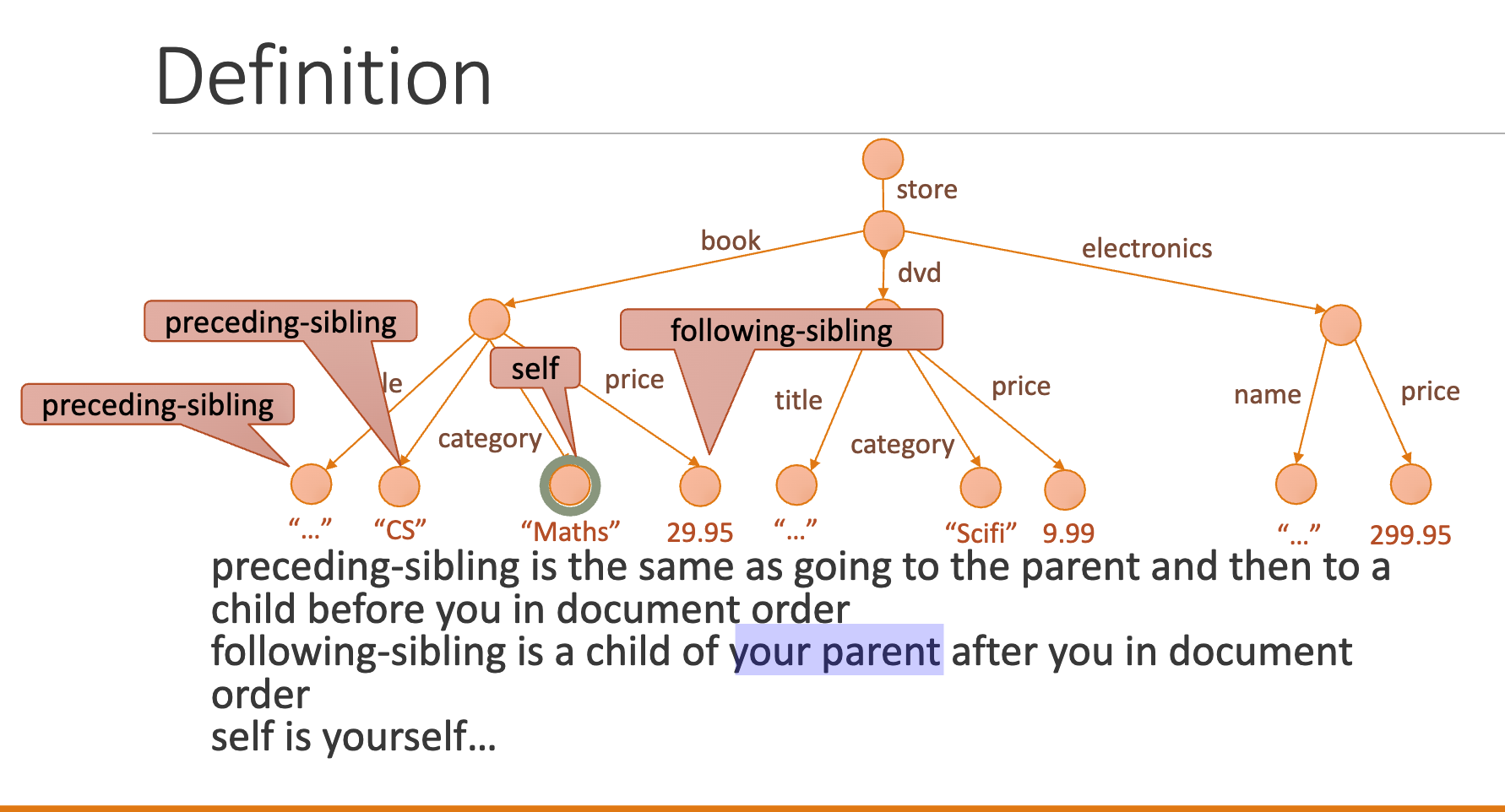

  • Axis("where to find"):
    • books/child::book/@category is same as omit child axis
    • books/book/attribute::category = book/@category
    • books//title = books/descendant::title find all title elements down from books node. ps. attributes (@) are not element
    • ancestor
    • following-sibling
    • preceding-sibling NB. Born of the same mother alt text
    • parent or ..
    • self or .
  • Conditions:
    • =, <, >, <=, >=, !=, and, or
    • books/book[@category="novel"]
    • library/book[title="The Invisible Library"]/@published

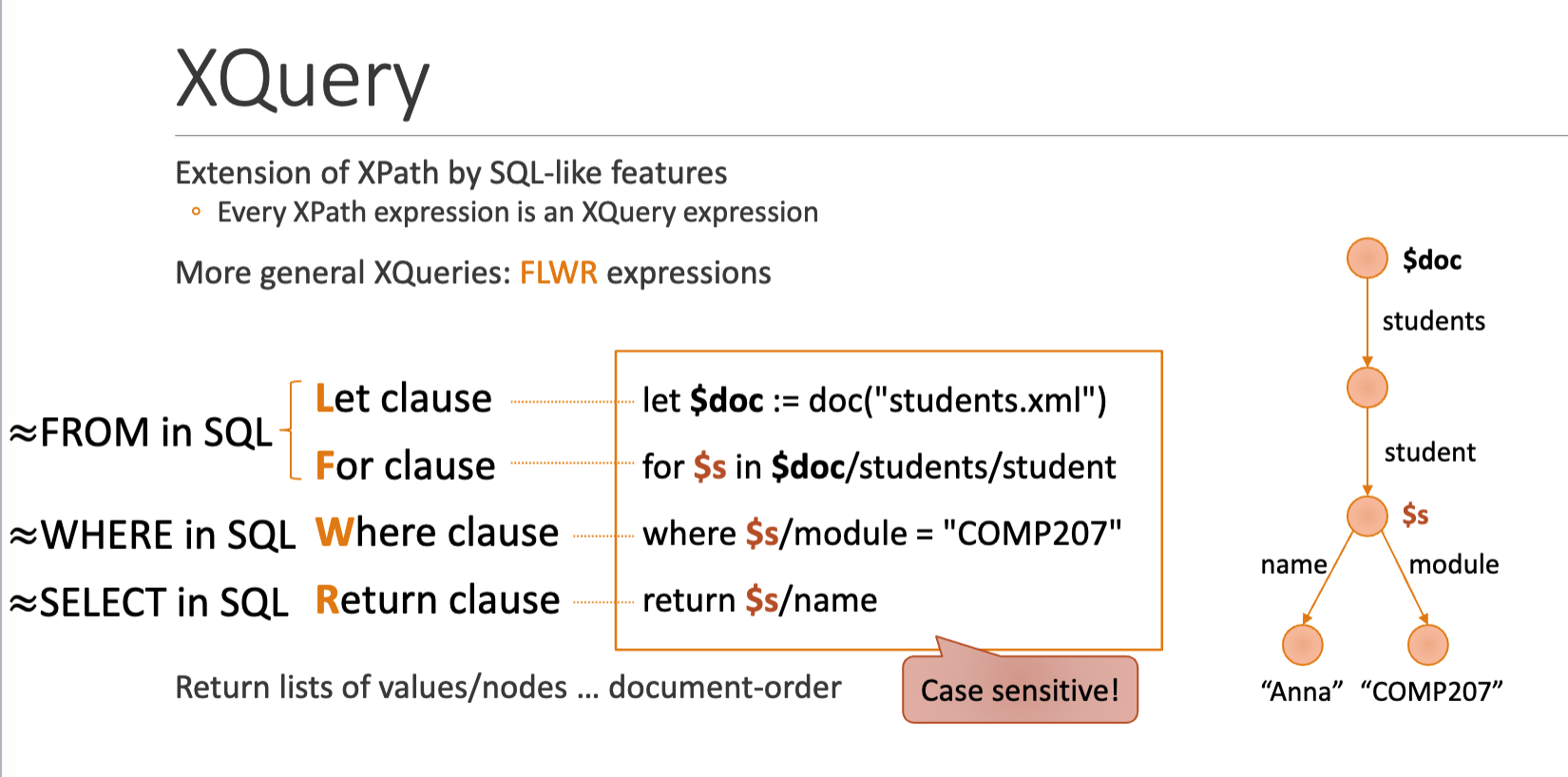

XQuery

alt text alt text

  • where EVERY $m in $l/teaches satisfies $m/year<2
  • where SOME $m in $l/teaches satisfies $m/year<2
  • Return more than one element return <pair>{$s/name}, {$s/id}</pair>
    {variable} substituted variable name with real element

alt text

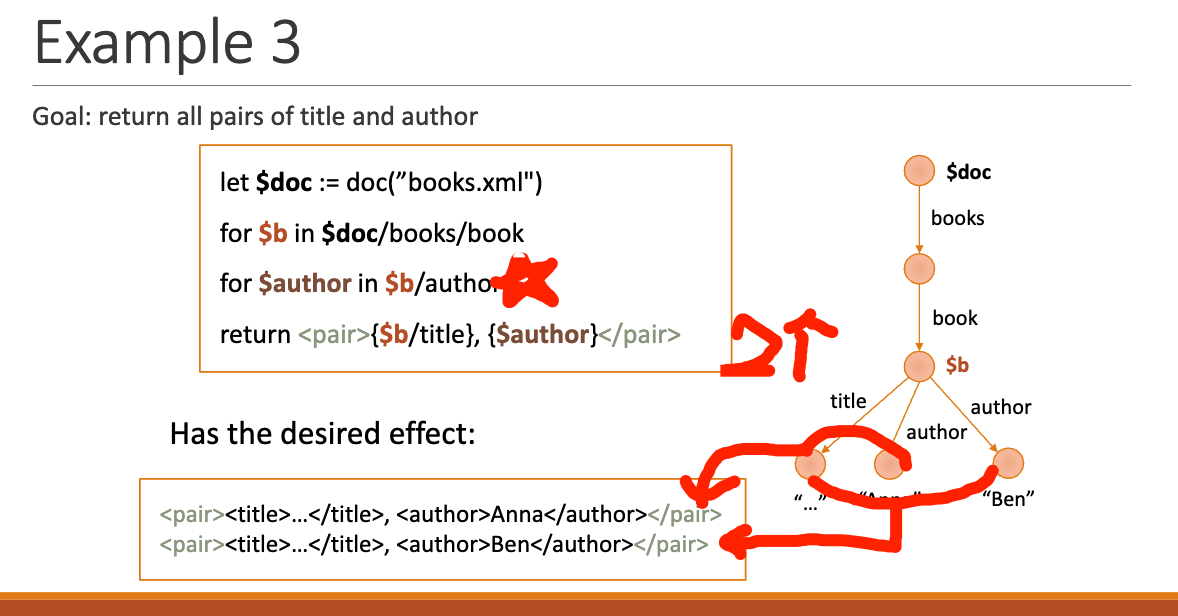

  • Ordered By
    let $doc := doc("mydoc.xml")
for $b in $doc/books/book
for $author in $b/author
order by $author descending
return <pair>{$b/title}, {$author}</pair>
  • Group BY: avg() count() min() max() sum()
    let $doc := doc("mydoc.xml")
for $m in $doc/university/student/module
group by $mod := $m
return <pair>{$mod}, {count($s)}</pair>
  • Distinct value
    distinct-values(
let $doc := doc("mydoc.xml")
for $m in $doc/university/student/module
return $m
)

Q1

alt text

NoSQL

CAP theorem: We cannot achieve at the same time:

  • COnsistency
  • Availability
  • Partition-tolerance

Approach for noSQL storing

  • Key-value pair
  • column store
  • document store
  • graph databases

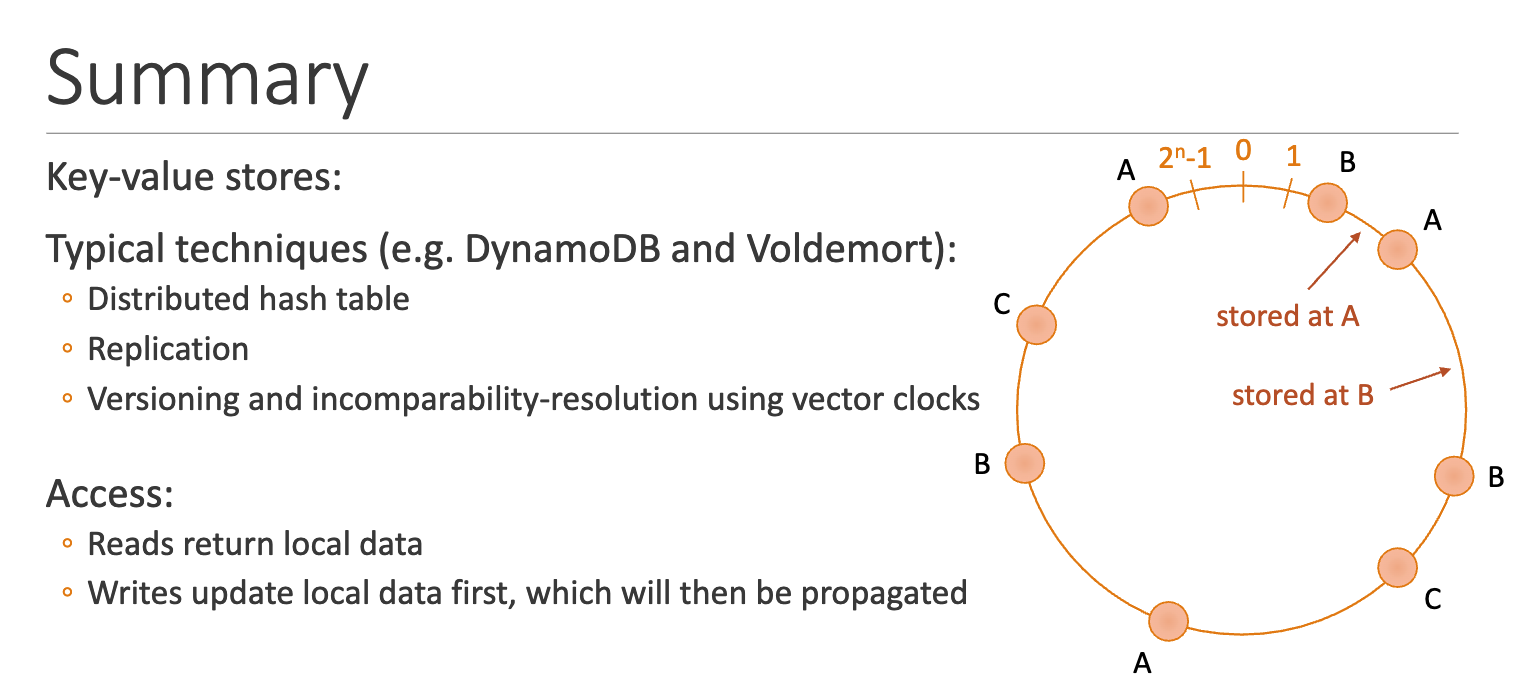

Key-value pair

Store key-value pair in distributed way.

Replication

alt text

Data analysis
