Distributed System Architecture

System Types

  • Personal System
  • Embedded System
  • Distributed System

Distributed System Characteristics

  • Resource Sharing
  • Openness
  • Concurrency
  • Scalability
  • Faulty Tolerance
  • Transparency
  • disadvantages: complex, security, manageability, unpredictability

Middleware

  • manage and supports different components of a distributed system
  • usually off-the-shelf

Distributed System Architectures

  • Client-server: Services are called by clients, and server response to the request (sockets)
  • Distributed object architecture: each object can provide to others and use services from others (remote methods)

Architectural Models

  • Multi-processor
    • Simplest distributed system model
    • System run task as processes at same time on different processor
    • NB, if there is one physical processor, the OS will slicing the runtime and dispatch to different processes.
  • Client-server
    • Applications is modelled as a set of services
    • Client knows of servers and server doesn't know of clients
    • Client and server are logical problem. i.e. run a program listing to request repeatedly
    • processor on server can handle multiple processes.
    • a physical clients terminal can have multiple clients. (sending request by ports)
  • Distributed object architecture
    • Each distributed entity is an object that provides and receives services to and from others
    • communication is done by Middleware
    • complex to design
    • pros:
    • Service can be processed and computing on more than one node -- truly distributed
    • Can add more computing resources is needed
    • Flexible and Scalable
    • Dynamically configuration as the objects can migrating across the networks

Layered Applications Architecture

A modern application usually has 3 layers

  • Presentation Layer. i.e. GUI
  • Applications processing Layer
  • Data layer. i.e. database

Thin and Fat clients

  • Thin: server handles the application layer and data later
  • Fat: clients handle the application layer, server only send data
  • Nowadays, it is combined. Backend running some security applications, and front end like mobile apps run the thick processing or simply thin UI

Three-Tier architecture

  • Each layer runs on separate processor. i.e. on more than one server

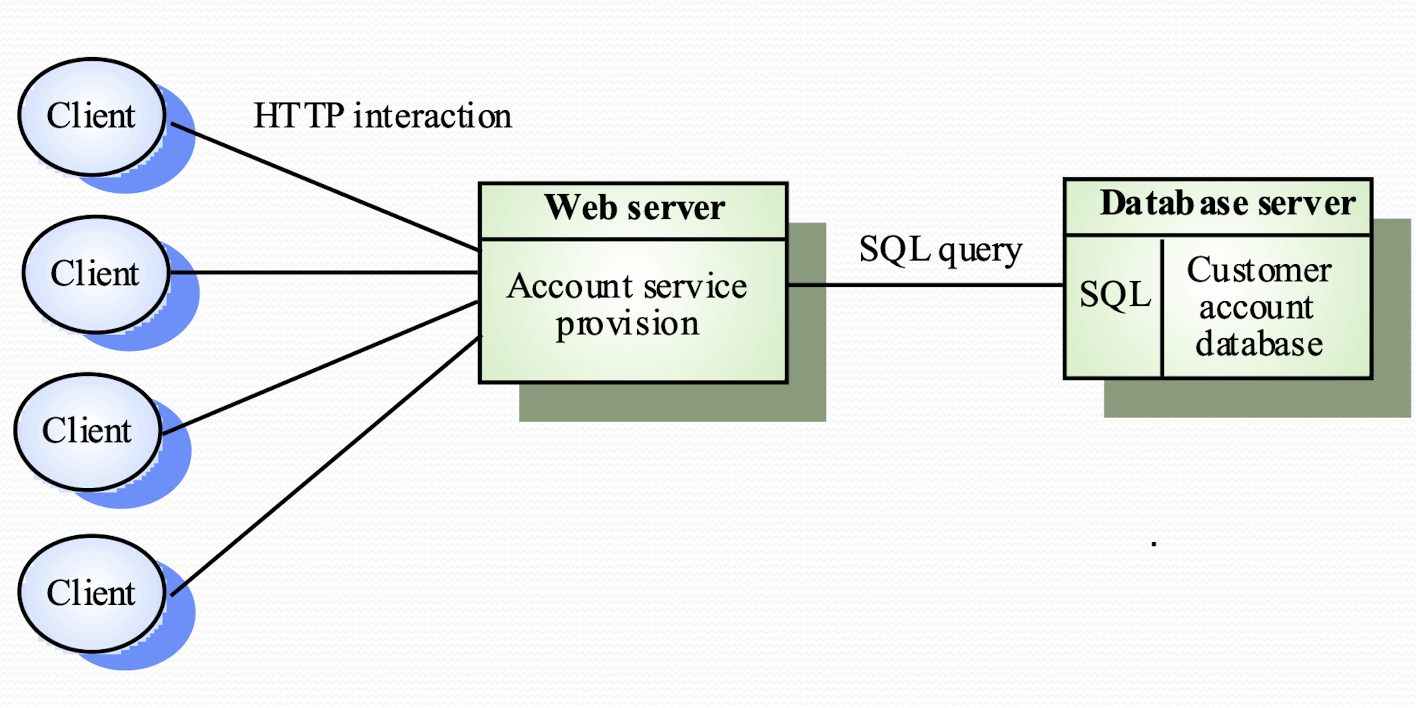

  • suitable for large scale applications with thousands of clients 3-tier client-server architecture
