Verification and Validation

Verification & Validation

  • Verification: "If the program meets specification documentation"

  • Validation: "If the product meets user's expectation"

Validation > Verification

In development process

V&V must be applied at each stage in software process - To discovery defects in system - To assess whether system is usable

Static and Dynamic Verification

Software inspection (static verification):

  • Looks at the system and code representation to see any problem
  • supplement by tool-bases document and code analysis
  • i.e. Bad variable name, uninitialized value...

Software testing (Dynamic verification):

  • Concerned with the behavior of system under dynamic operation
  • test by executing the system (test case) with test data to observe functional behavior
  • This is only possible when an executable version of program is available. Which is an advantage of incremental development since a testable version of the system is available at an early stage
  • Real data can be used as test input

V&V

Program testing

  • Testing can reveal errors' presences BUT CANNOT tell errors' not existence
  • A successful test can find one or more errors only once
  • Nonfunctional requirements can be validated only by program testing
  • Always used program testing with static verification to provide full V&V coverage

Testing in Agile

Agile development:

  • Agile Development is test-driven
  • Test cases are developed before coding

Benefits:

  • Test could be created more validly, since it is based on specification purely
  • All code will be tested
  • Better suits specification

Types of Testing

Defect testing:

  • Tests are designed to discover system defects
  • A good defect test could reveal the presences of defects in a system

Statistical testing:

  • Test to reflect the frequency of user inputs
  • Used for reliability estimation

V&V Goal

"Verification and validation should establish a degree of confidence that the software is fit for purpose"

Could not ensure defect-free system

The degree of confidence expected is given by:

  • Software function: How safety-critical the system should be
  • User expectation: Difference users require various level of fitness with specification
  • Marketing environment: Cheaper products may have lower standard of faults

Testing and Debugging

Debugging:

  • Debugging is concerned with locating and repairing errors
  • There is no simple process for debugging. It often involves looking for patterns in defective test output
  • i.e. Syntax error could be caught by compiler and it will indicate the location of error and the type of error. Semantic error may occur in a compiled program but produce incorrect output, they are harder to detect

Testing:

  • Testing is for find the existence of defects
  • Regression testing: it's advisable to retest the program with all test data after fixed one error to make sure you don't create new problems

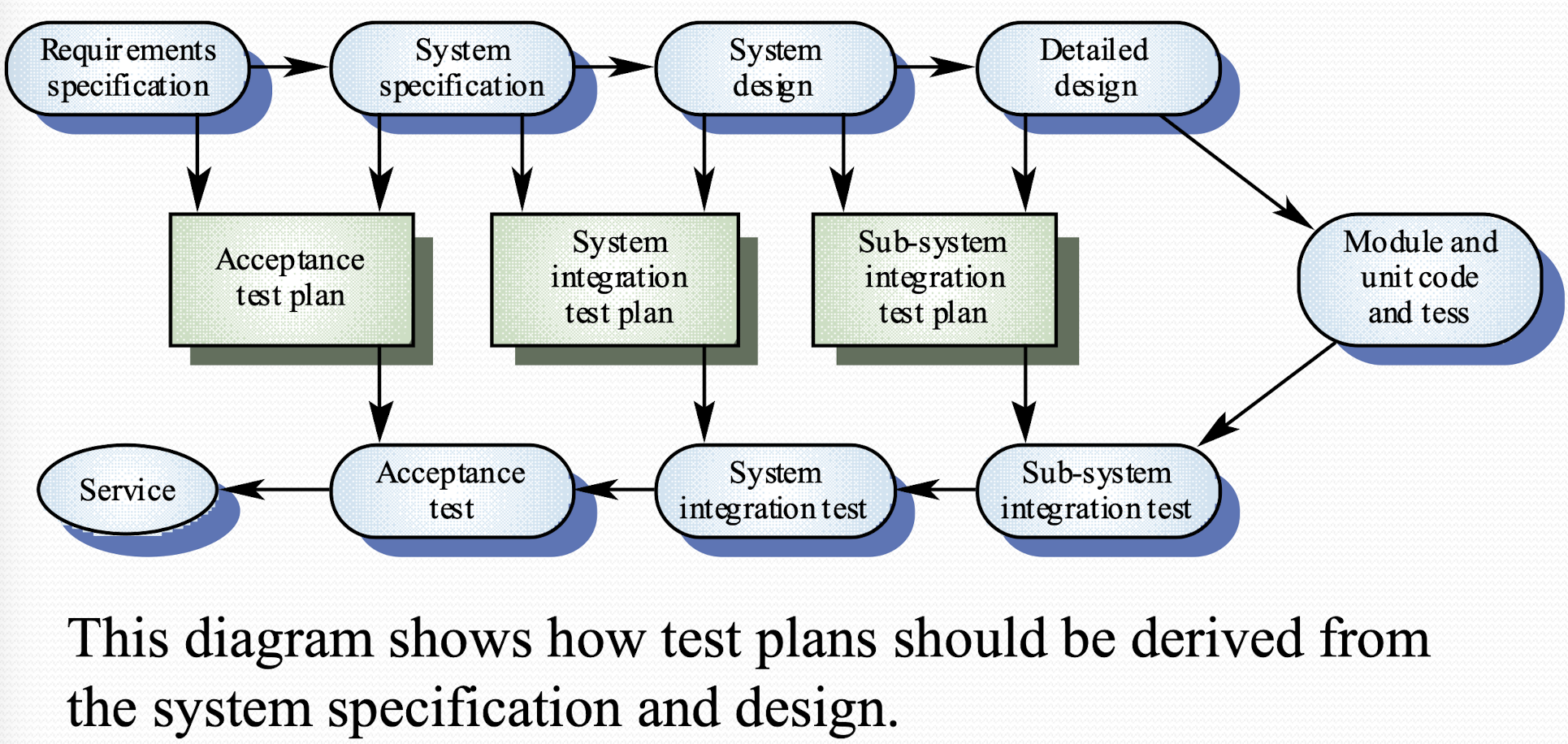

V&V Planning

  • careful planning as required to get the most out of testing and inspection process
  • you should plan when and how to conduct test along the development process
  • ideally,you don't want to submit your untested code to repository

alt text

Structure of the software test plan

  • the testing process is a description of the major phase of the testing process
  • requirement traceability: testing should ensure all the requirements are individually tested
  • Tested item: what part of system or functions should be tested
  • testing schedule: an overall schedule for the testing of the software is required and resources must be allocated as part of the general project schedule
  • Test recording: results of tests should be systematically recorded i
  • Hardware requirement: some test should be done on hardware maybe

Software inspection

Software inspection check everything from requirement, specification, UML diagram, coding, test data, etc. - Involved people: programmer and another inspector - Inspection is only'looking' for problems. So you can start inspecting before implementation phase

Structural Testing

  • AKA white box testing
  • The objective is to make sure every statement (every line) of code is working correctly

Path Testing

  • Make sure every branch (path) in program is tested and executed at least once
  • Related to program flow diagram
  • Minimum number of test you should do = "number of edges - number of nodes + 2" (in a program flow diagram)
