Lecture 3 Software Process

  • requirement engineering and specification
  • software design
  • programming testing and debugging
  • software evolution

software specification

  • specification is the process of establishing what are required and the constrains of the systems operation and development

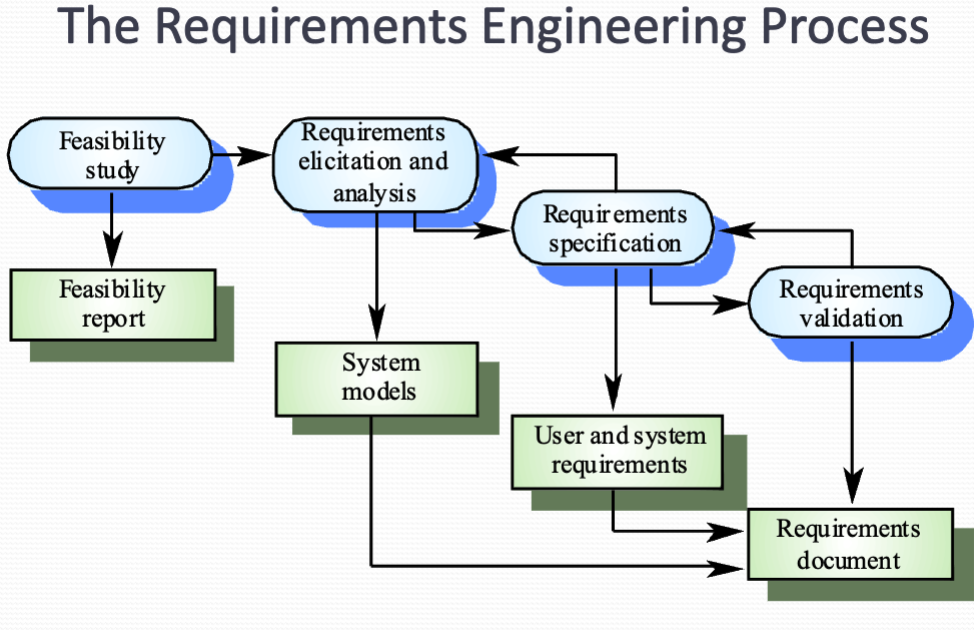

  • it may contains:
    • Feasibility study
    • Requirement elicitation(发掘) and analysis
    • Requirement specification
    • Requirement validation

alt text

software design and implementation

It is the process of converting the system specification into an executable system

  • Software design
    • Design a software structure they Realise the specification
    • Design the database website data structure, communication protocols
  • Software implementation
    • Translate this designs into an executable program
  • N.B. The activities of desire implementation are closely related and may be interleaved

design process activities

  • Architectural design
    • Design the subsystems that makes up the system and their relationships, Well represented by Documentations.
  • Abstract specifications
    • For each subsystems, design and specifies the operational constrains and services
  • Interface design
    • For each subsystem, clear interface with other other subsystems is designed and well documented
  • Component design
    • Allocate services to components, As well as design the interfaces
  • Data structure design
  • Algorithm Design

Two design philosophy - Data driven design - Always start by looking at the data that The system will process - Responsibility driven design - Think of the functions at first (the responsibility of the system) - break complex functions into smaller function parts - each responsibilities may require Some data to support the action

Design methods - The design is usually documented as a set of graphical models - Data-flow model - Entity-relation-attribute - Structural model - Object model - State transition model

Programming and Debugging

  • Programming and debugging process is translating a design into a program and remove Error from the program
  • programming is usually a personal activity
  • programmers carry out some program testing to discover faults in the program and debug in the debugging process

Good programming is iterative

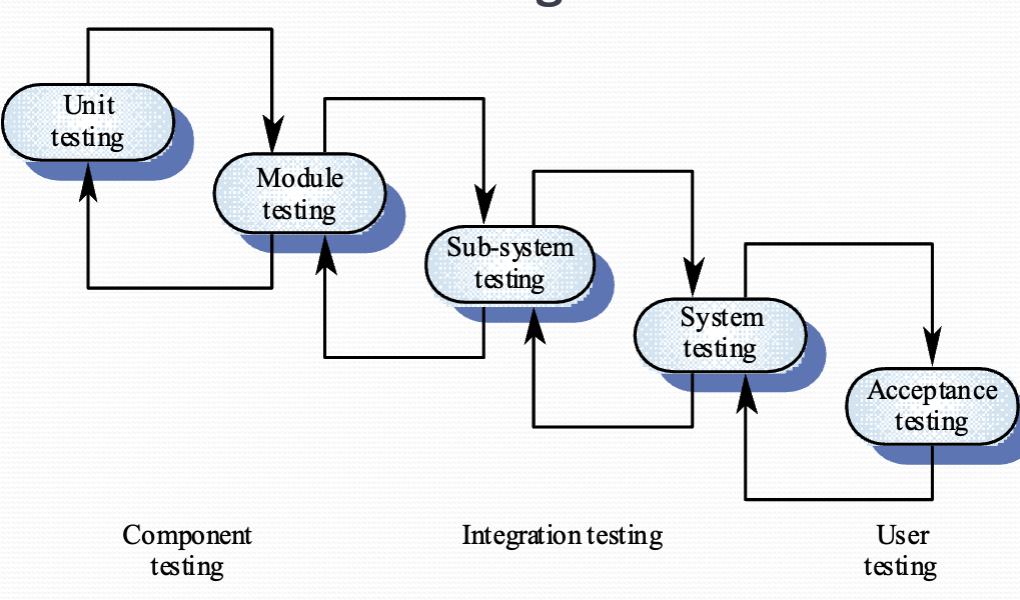

Testing stage

alt text

  • Unit testing is for individual components. i.e. Test class methods
  • Module testing is for a collection of Dependent components. i.e. Test classes that are integrated with others
  • Subsystems are integrated by modules, the testing focus on the interfaces of subsystems. i.e. Test a number of classes what collaborate to provide a service, often organized by JAR libs
  • System testing
  • Acceptance testing is for test if the system is acceptable to customer data
