Requirement engineering process

Security requirements

Availability requirement

alt text

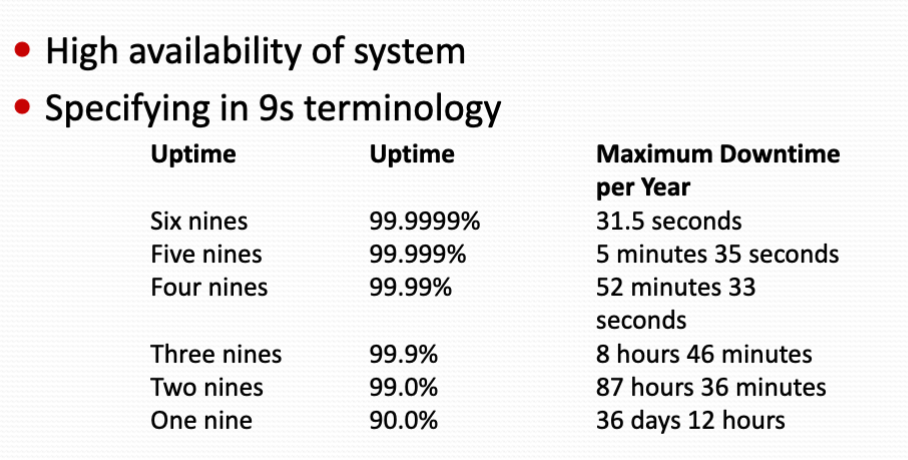

9s Terminology not always useful. You may want more than time to describe the availability.

Think about three 9s: 78 seconds unavailable per day

Ideally you need to specify:

  • Worst case scenario
  • Worst case delay as well as Downtime
  • How the system can Degrade gracefully (i.e. shutdown with data saved)

Logs and alerts

Security depend heavily how the maintain know of activities. Audits and logs help.

  • Standard log
  • Failed login log
  • Unusual activity log
  • Alert log

Bell-LaPadula model

All items are given a security clearance level

  • Top secret, Secret, sensitive, unclassified

Rules:

  • No read up:
    • A subject cannot read the document above their clearance level.
  • No write down:
    • A document cannot be copied/included in another document that in a lower security clearance.
    • So if I want to add a top-secret term to a "sensitive" Document, The result will be a top-secret document
  • Only trusted subjects can write document down
    • The subject should be shown really trust worth Regarding to the security policy.

Security Specifying

  • Ideally, security requirement should be kept as open as possible to allow further upgrading if encryption algorithm or protocols

Security policy

Make requirement for people to follow.

  • Shredding documents after reading
  • Security disposal of USB device

Requirement Checking

  • Validity: does the system provide the functions which support the customers need?
  • Consistency: Are there any requirement conflicts?
  • Completeness: Are all functions included?
  • Realism: Can the requirement be implemented whether they given available budget and technology?
  • Variability: can the requirement be checked?

Test cases within Scenarios

  • Show the developer by examples, what will happen given certain condition.
  • They can be used to create testing for the software
  • Scenario test making things very clear and reduce ambiguity

Agile Requirement Tool

  • Cucumber: A user story tool

    • It's a software tool used to help writ requirements which are linked directly to tests

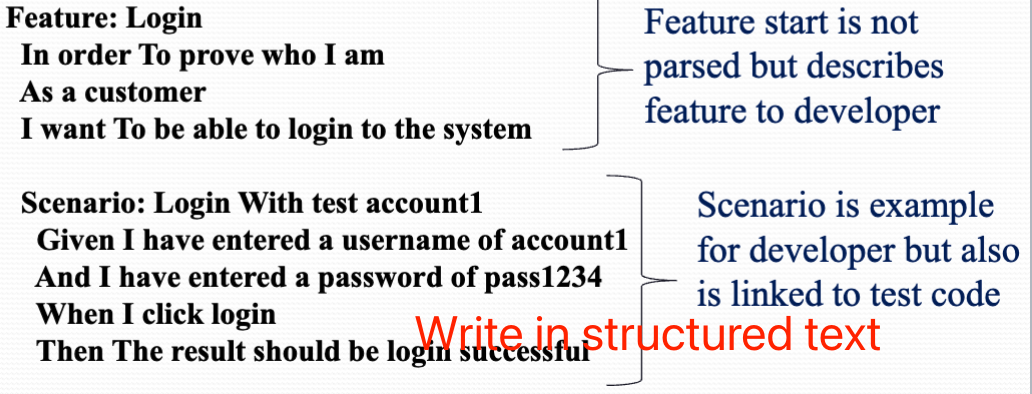

    • Cucumber uses a text format Gherkin which describe features and test data, can be integrated with JUnit
      alt text alt text

  • Gives simple and clear notation to write specification

  • Analysts/test team and even customers can learn Gherkin and develop feature files

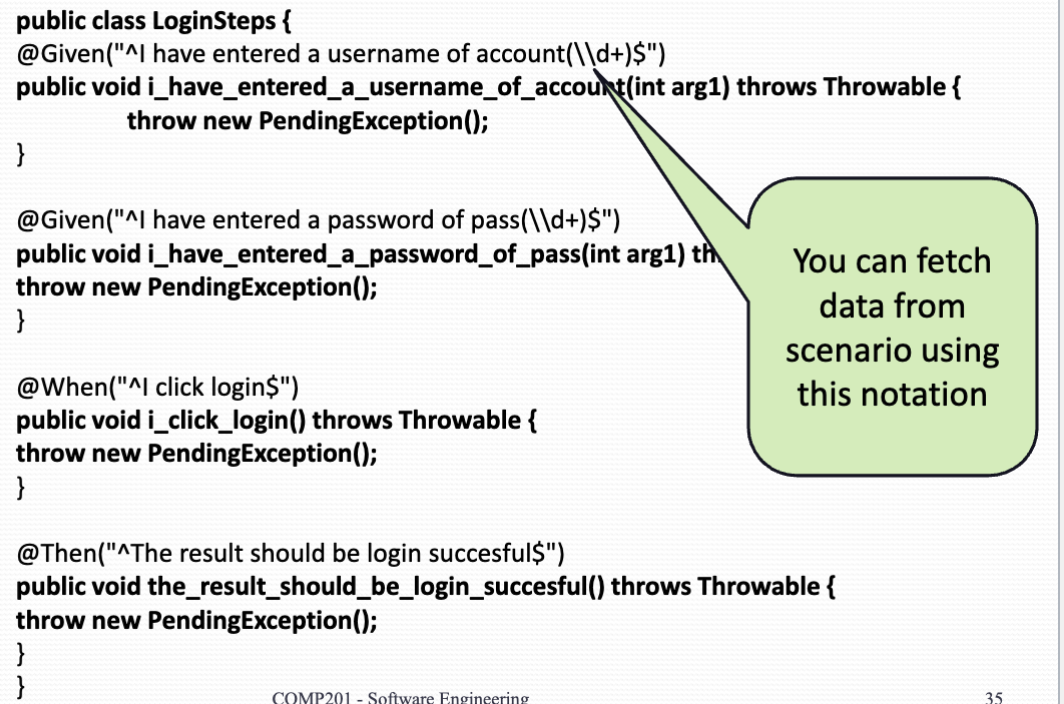

  • Step files are produced by development team
  • Test data can be change easily
